Encoders – Quick Picks

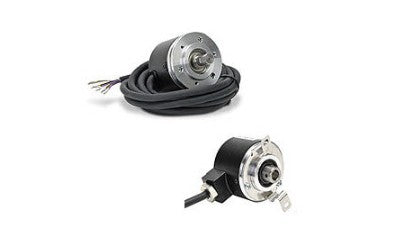

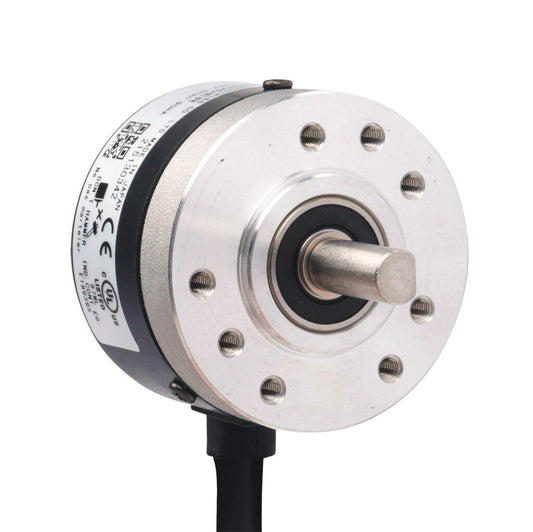

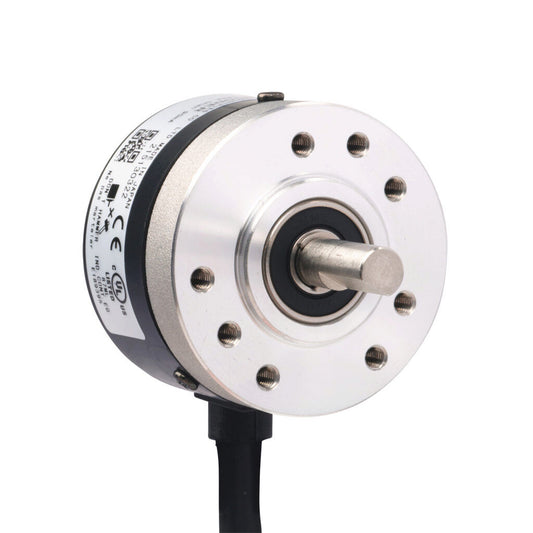

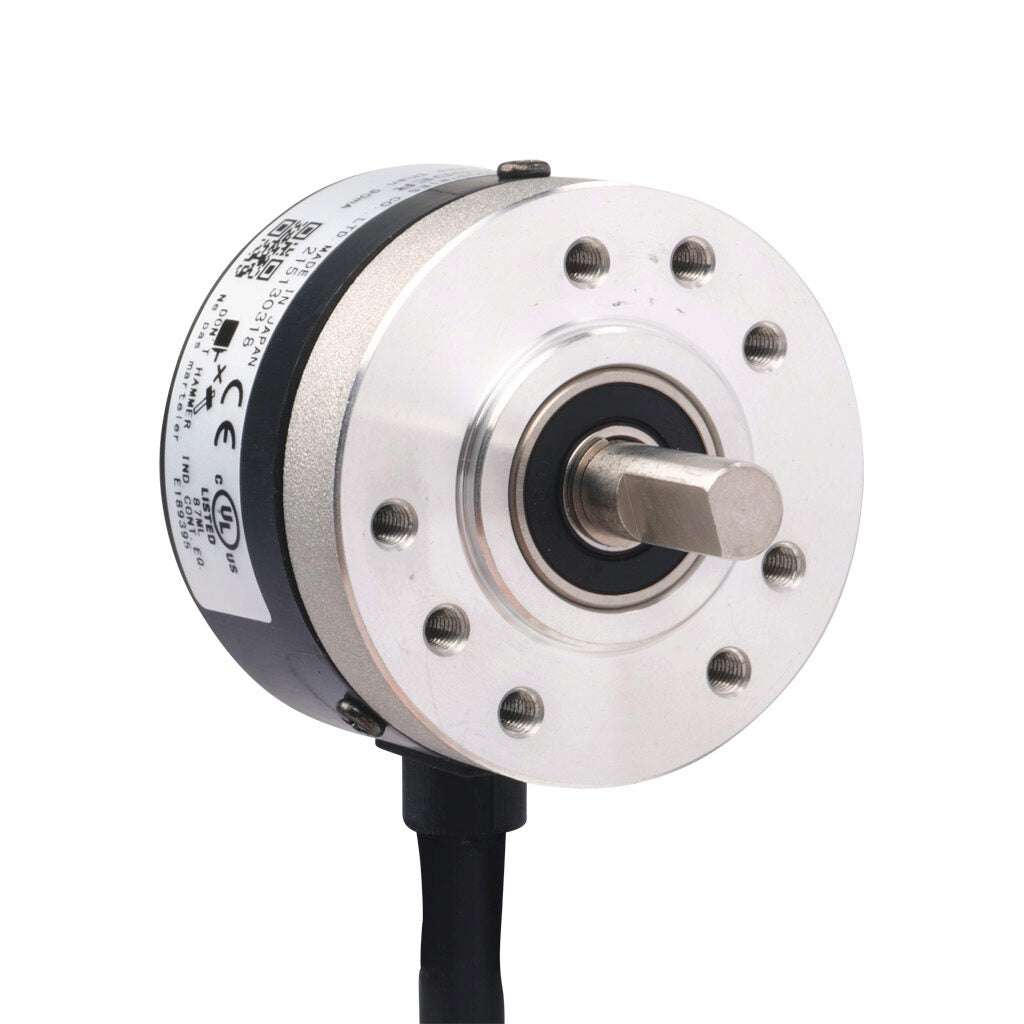

JTEKT Light Duty Incremental Encoders (Quadrature)

JTEKT Light Duty Incremental Encoders (Quadrature)

JTEKT (formerly Koyo) light-duty encoders are industrial duty encoders for applications with light shaft loading. These encoders are perfect for applications with minimal shaft loading and flexible shaft couplings.

Read More...
  • Resolution available from 100 pulses per revolution to 2500 pulses per revolution
  • 6mm solid shaft or 8mm hollow shaft
  • Small body - 38mm or 40mm diameter
  • Dust proof (IP50) and water resistant (IP65) ratings
  • HTL/open collector or TTL/line driver
  • Up to 200 kHz maximum response frequency
  • Two-meter cable with tinned ends

Starting at $99.00

(TRD-SR100AD)

Shop Now

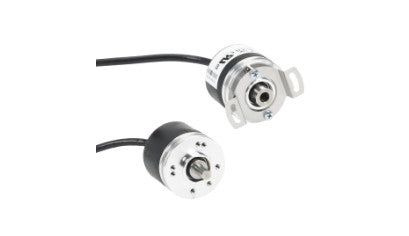

Lika Light Duty Incremental Encoders (Quadrature)

Lika Light Duty Incremental Encoders (Quadrature)

Lika light-duty encoders (A41 series) are cost-effective encoders for applications with light shaft loading. These encoders are perfect for industrial applications with good mounting conditions and flexible shaft couplings.

Read More...
  • Resolution available from 100 pulses per revolution to 4096 pulses per revolution
  • 6mm solid shaft or 8mm hollow shaft
  • Small body - 38mm or 40mm diameter
  • Dust proof (IP50) and water resistant (IP64 and IP65) ratings
  • Universal output (works with HTL/open collector and TTL/line driver)
  • Up to 200 kHz maximum response frequency
  • Two-meter cable with tinned ends

Starting at $99.00

(A41S-0200-HZCP6-AL2)

Shop Now

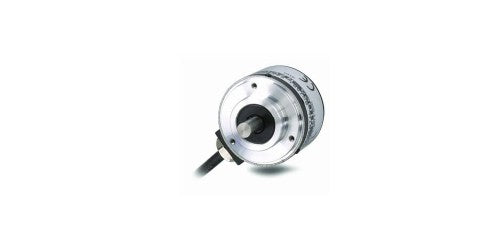

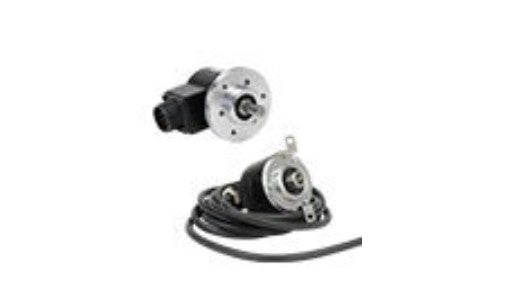

JTEKT Medium Duty Incremental Encoders (Quadrature)

JTEKT Medium Duty Incremental Encoders (Quadrature)

JTEKT (formerly Koyo) medium-duty encoders offer flexibility, high quality, and superb accuracy.

Read More...
  • Incremental resolution available from 3 pulses per revolution to 5000 pulses per revolution
  • 8mm or 3/8-in solid shaft, 8mm hollow shaft
  • Medium body: 2 inch or 50mm diameter
  • Dust proof (IP50) or splash proof (IP65) ratings
  • TTL/Line Driver or HTL/totem-pole output
  • Up to 200 kHz response frequency
  • Two-meter cable with tinned ends or MS connector

Starting at $99.00

(TRDA-20R1N100RZD)

Shop Now

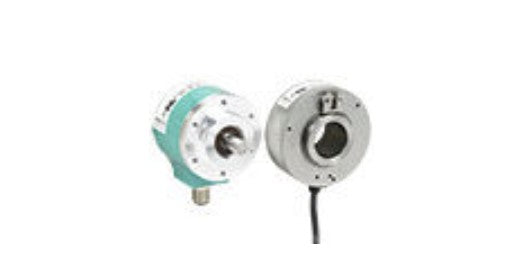

Lika Electronic Medium Duty Incremental Encoders (Quadrature) New!

Lika Electronic Medium Duty Incremental Encoders (Quadrature) New!

Lika Electronic medium-duty encoders provide several distinct options including compact, high-heat, and programmable encoders, as well as encoders designed for large AC motors.

Read More...

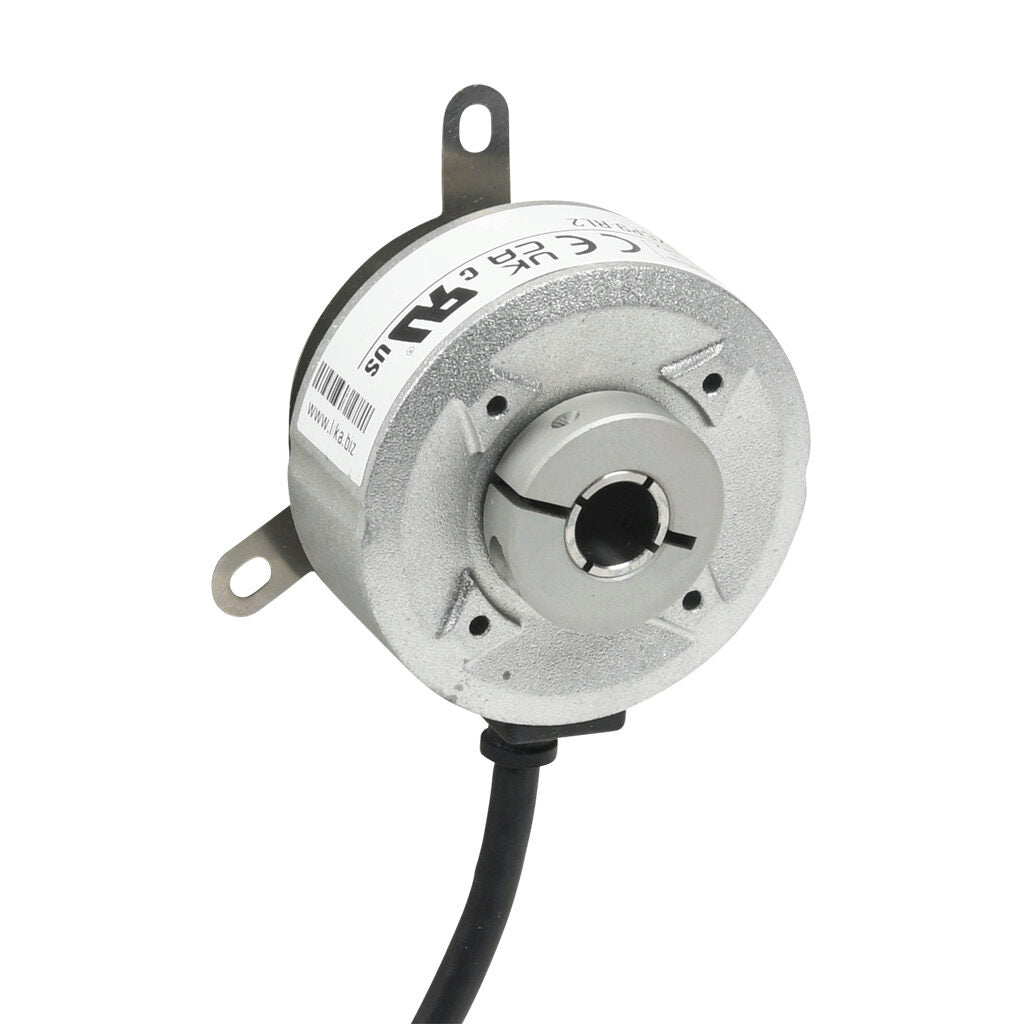

  • A50 series units are designed to withstand high temperature environments up to 100 C (212F) with ¼ inch or 3/8 inch hollow shafts, in resolutions from 360 up to 2048PPR
  • A80 series encoders are designed to fit large AC motors, with a 30mm hollow shaft and 1024 PPR resolution; a selection of reducer bushings is available to accommodate metric or SAE shafts (5/8" to 30mm)

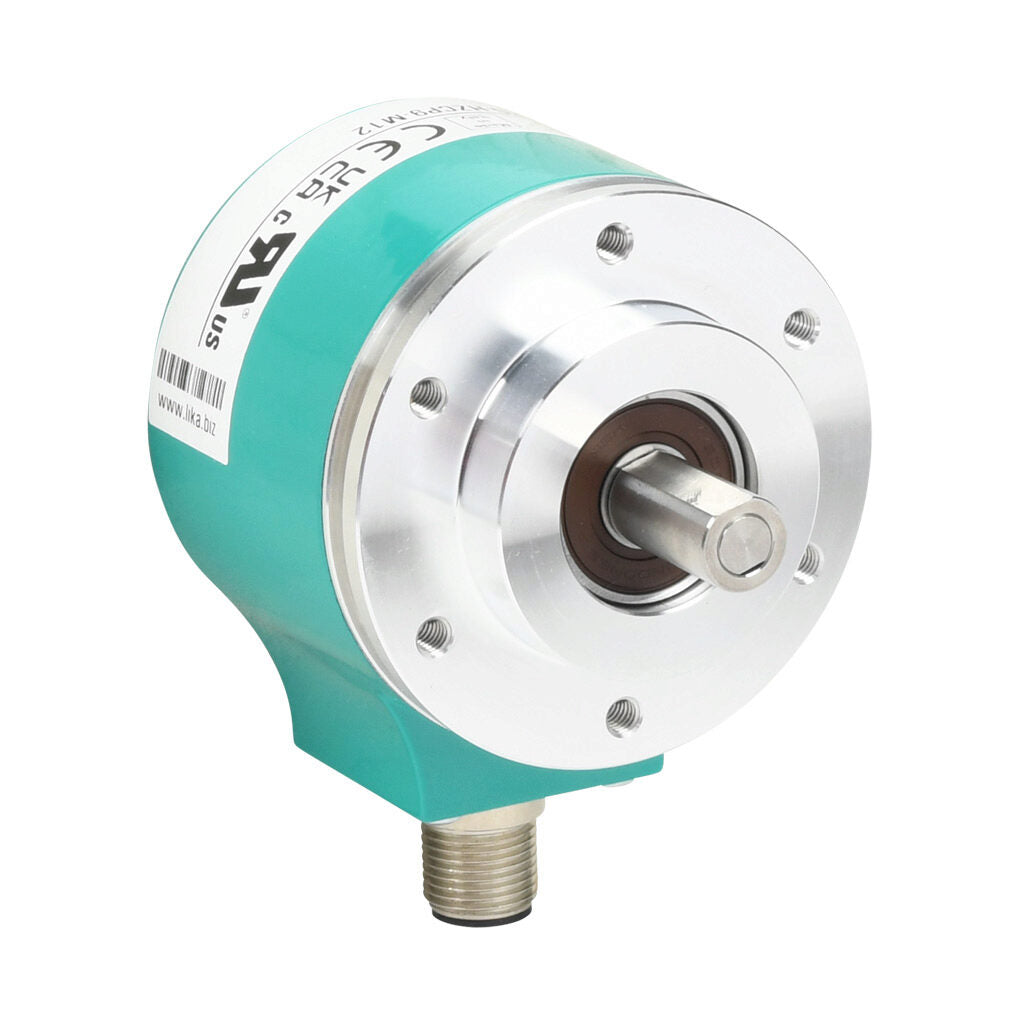

  • AQ5x series medium duty encoders have programmable resolution from 1 to 16,384 PPR, have a 58 mm or 59 mm body diameter, and either a 3/8 inch solid shaft or a 15mm hollow shaft; reducer bushings are available to accomodate metric and SAE shafts from 6mm to 15mm

Starting at $99.00

(A50H-0360-HZCP6-RL2)

Shop Now

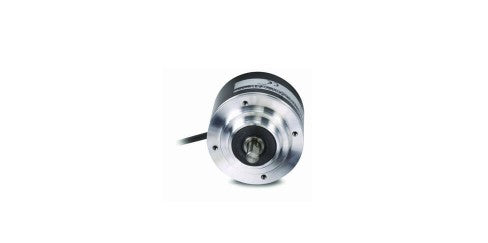

JTEKT Heavy Duty Incremental Encoders (Quadrature)

JTEKT Heavy Duty Incremental Encoders (Quadrature)

JTEKT (formerly Koyo) heavy-duty encoders are the most rugged encoders you can buy. Top-of-the-line bearings help maintain a service life of 12 billion revolutions and allow significant loads on the shaft.

Read More...
  • Incremental operation from 30 pulses/revolution to 5000 pulses/revolution
  • 10mm solid shaft
  • Large body: 3 inch or 78mm diameter
  • Splash proof (IP65) rating
  • HTL/Totem-pole output
  • Up to 100 kHz response frequency
  • Two-meter cable with tinned ends

Starting at $99.00

(TRD-GK100-RZD)

Shop Now
JTEKT Medium Duty Absolute Encoders (Gray Code)

JTEKT Medium Duty Absolute Encoders (Gray Code)

JTEKT (formerly Koyo) absolute encoders use gray code (a version of binary where the outputs only change state one bit at a time) to describe each position, so position data is not lost when power is cycled AND the response frequency is slower for a given resolution.

Read More...
  • Absolute resolution available from 32 to 2048 pulses per revolution
  • 8mm solid shafts
  • Small body with 50mm diameter
  • Splash proof (IP65) rating
  • Resolution ranges from 5-bit to 11-bit gray code output
  • Up to 20 kHz response frequency
  • Two-meter cable with tinned ends

Starting at $99.00

(TRD-NA256NWD)

Shop Now

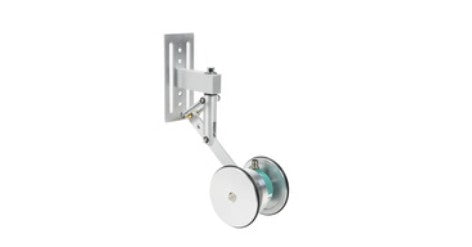

Lika Electronic Rotary Measuring Wheel Encoders New!

Lika Electronic Rotary Measuring Wheel Encoders New!

Lika Electronic measuring wheel encoders feature a spring-loaded lever with a dual shaft encoder. Rubberized wheels are installed on the encoder shaft. These encoders ride directly on a product or belt to measure distance/length or provide speed control feedback.

Read More...
  • US/imperial and metric wheel sizes (standard 4 inch or optional 80mm wheel)
  • Spring loaded arm with up to 30mm deflection
  • IP65 environmental protection rating
  • 250 and 1250 PPR encoders with incremental quadrature output

Starting at $99.00

(AR01-0250-HM12-A)

Shop Now

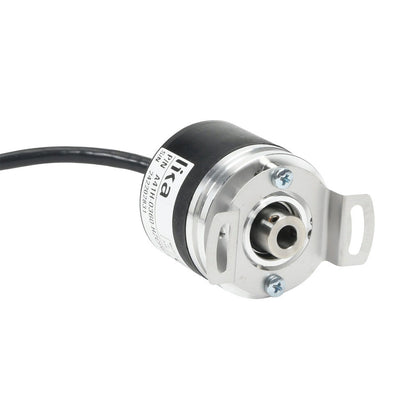

A41H-0360-HZCP6-AL2
A41H-0360-HZCP6-AL2

Lika Electronic A41 series incremental (quadrature) rotary encoder, 5-30 VDC, universal (line driver or NPN/PNP open collector) output, light duty, 360 ppr, 1/4in hollow shaft, ...

Specifications | Downloads | More info…

$107.00

0 Available

FAST delivery available

TRD-SR1000VD
TRD-SR1000VD

JTEKT TRD-SR series incremental (quadrature) rotary encoder, 5 VDC, line driver (differential) output, light duty, 1000 ppr, 6mm solid shaft, 38mm diameter body, IP50, 6.5ft/2m ...

Specifications | Downloads | More info…

$103.00

0 Available

FAST delivery available

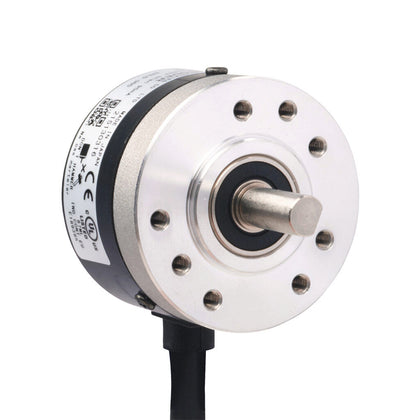

TRD-SR200VD
TRD-SR200VD

JTEKT TRD-SR series incremental (quadrature) rotary encoder, 5 VDC, line driver (differential) output, light duty, 200 ppr, 6mm solid shaft, 38mm diameter body, IP50, 6.5ft/2m c...

Specifications | Downloads | More info…

$103.00

0 Available

FAST delivery available

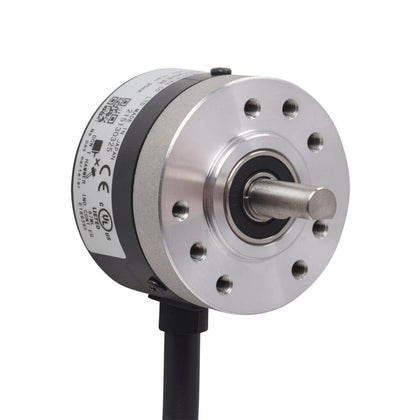

TRD-SR600AD
TRD-SR600AD

JTEKT TRD-SR series incremental (quadrature) rotary encoder, 5-26 VDC, NPN open collector output, light duty, 600 ppr, 6mm solid shaft, 38mm diameter body, IP50, 6.5ft/2m cable ...

Specifications | Downloads | More info…

$103.00

0 Available

FAST delivery available

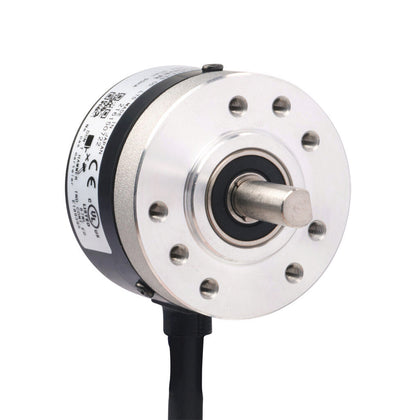

TRD-SR100AD
TRD-SR100AD

JTEKT TRD-SR series incremental (quadrature) rotary encoder, 5-26 VDC, NPN open collector output, light duty, 100 ppr, 6mm solid shaft, 38mm diameter body, IP50, 6.5ft/2m cable ...

Specifications | Downloads | More info…

$103.00

0 Available

FAST delivery available

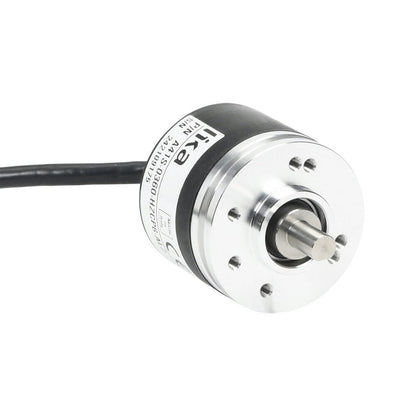

A41S-0360-HZCP6-AL2
A41S-0360-HZCP6-AL2

Lika Electronic A41 series incremental (quadrature) rotary encoder, 5-30 VDC, universal (line driver or NPN/PNP open collector) output, light duty, 360 ppr, 1/4in solid shaft, 4...

Specifications | Downloads | More info…

$101.00

0 Available

FAST delivery available

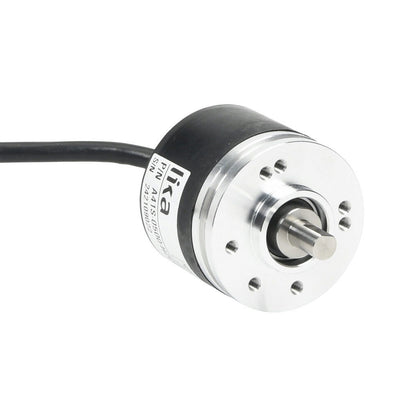

A41S-0500-HZCP6-AL2
A41S-0500-HZCP6-AL2

Lika Electronic A41 series incremental (quadrature) rotary encoder, 5-30 VDC, universal (line driver or NPN/PNP open collector) output, light duty, 500 ppr, 1/4in solid shaft, 4...

Specifications | Downloads | More info…

$101.00

0 Available

FAST delivery available

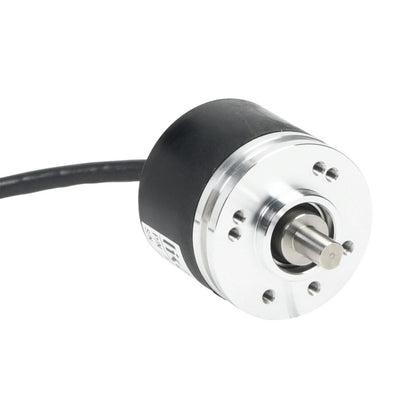

A41S-0200-HZCP6-AL2
A41S-0200-HZCP6-AL2

Lika Electronic A41 series incremental (quadrature) rotary encoder, 5-30 VDC, universal (line driver or NPN/PNP open collector) output, light duty, 200 ppr, 1/4in solid shaft, 4...

Specifications | Downloads | More info…

$101.00

0 Available

FAST delivery available

Smart Search — Find Your Encoder

Start Filtering
