| Brand | Lika Electronic |
| Item | Encoder |
| Series | A41 |
| Feedback Type | Incremental (quadrature) |
| Encoder Type | Rotary |
| Voltage Rating | 5-30 VDC |
| Encoder Output Type | Universal (line driver or NPN/PNP open collector) |
| Duty Rating | Light duty |
| Encoder Resolution | 360 ppr |
| Axial Shaft Load | 20N |
| Frequency Response | 100 kHz |
| Speed Rating | 6000rpm |
| Flange Mount | No |
| Encoder Body Diameter | 41mm |
| Housing Material | Fiberglass reinforced plastic |
| IP Rating | IP64 |
| Cable Length | 6.5ft/2m |
| Cable Diameter Size | 5mm |
| Wire Size | 24 AWG |
| Exit Orientation | Axial |
| Connector Type | Pigtail |
A41S-0360-HZCP6-AL2 Downloads
Technical Specifications
Other Documents
Drawings
A41S-0360-HZCP6-AL2 Compliance Information
Agency Compliance & Certifications
- 📄 UL Listed File #: None
- 📄EU REACH Document

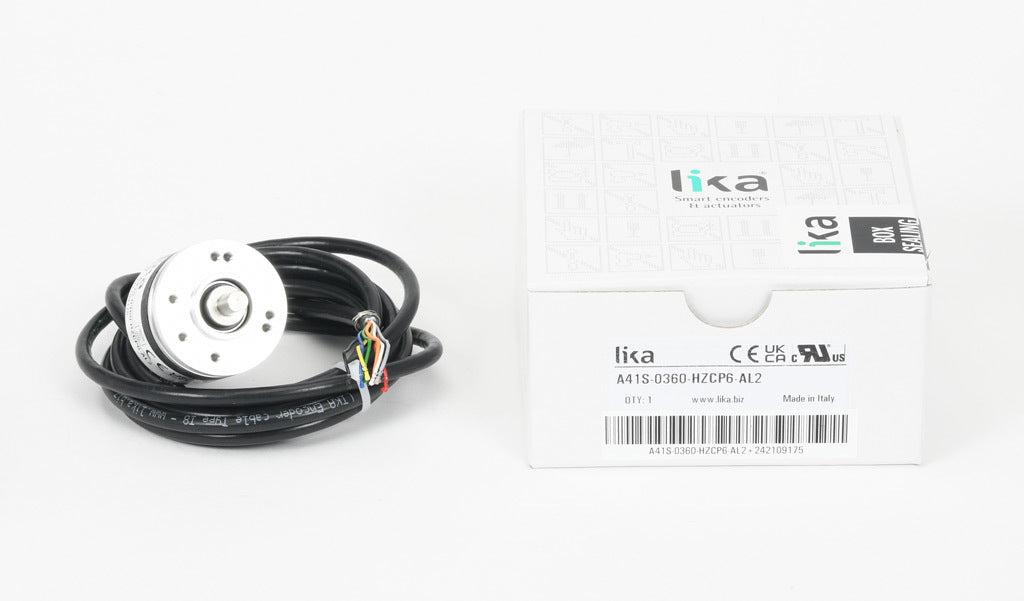

A41S-0360-HZCP6-AL2 What's in the Box
What’s in the box information is coming soon.
