| Brand | Lika Electronic |
| Item | Encoder |
| Series | A50 |
| Feedback Type | Incremental (quadrature) |
| Encoder Type | Rotary |
| Voltage Rating | 5-30 VDC |
| Encoder Output Type | Universal (line driver or NPN/PNP open collector) |
| Duty Rating | Medium duty |
| Encoder Resolution | 1024 ppr |
| Axial Shaft Load | 20N |
| Frequency Response | 100 kHz |
| Speed Rating | 6000rpm |
| Flange Mount | No |
| Encoder Body Diameter | 50mm |
| Housing Material | Aluminum alloy |
| IP Rating | IP65 |
| Cable Length | 6.5ft/2m |
| Cable Diameter Size | 5mm |
| Wire Size | 24 AWG |
| Exit Orientation | Radial |
| Connector Type | Pigtail |
A50H-1024-HZCP6-RL2 Downloads
Technical Specifications
Other Documents
Drawings
A50H-1024-HZCP6-RL2 Compliance Information
Agency Compliance & Certifications
- 📄 UL Listed File #: None
- 📄EU REACH Document

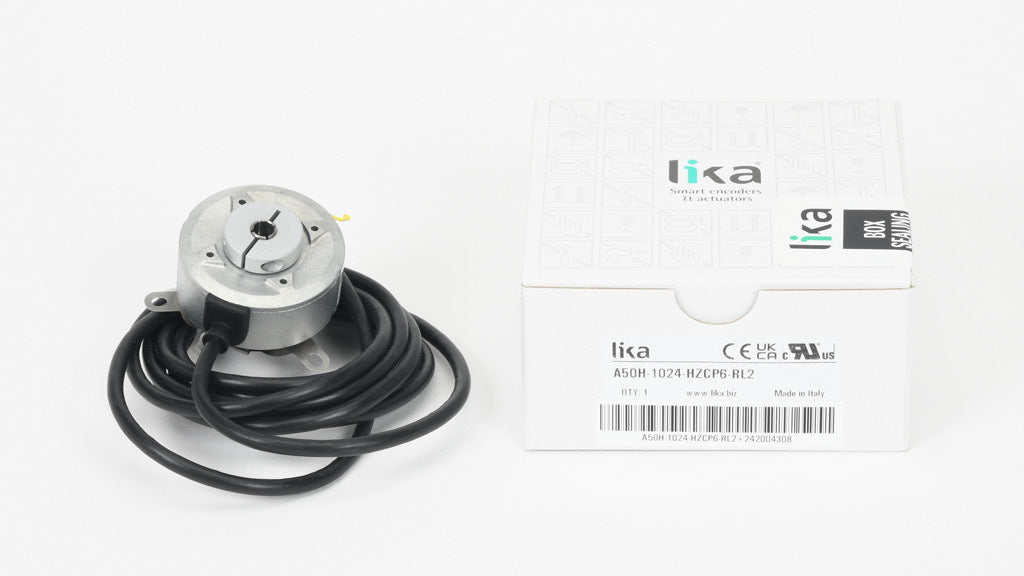

A50H-1024-HZCP6-RL2 What's in the Box
What’s in the box information is coming soon.
