A80H-1024-HZC30-M23

A80H-1024-HZC30-M23

$164.00 AUD
$164.00 AUD
Sale Sold out

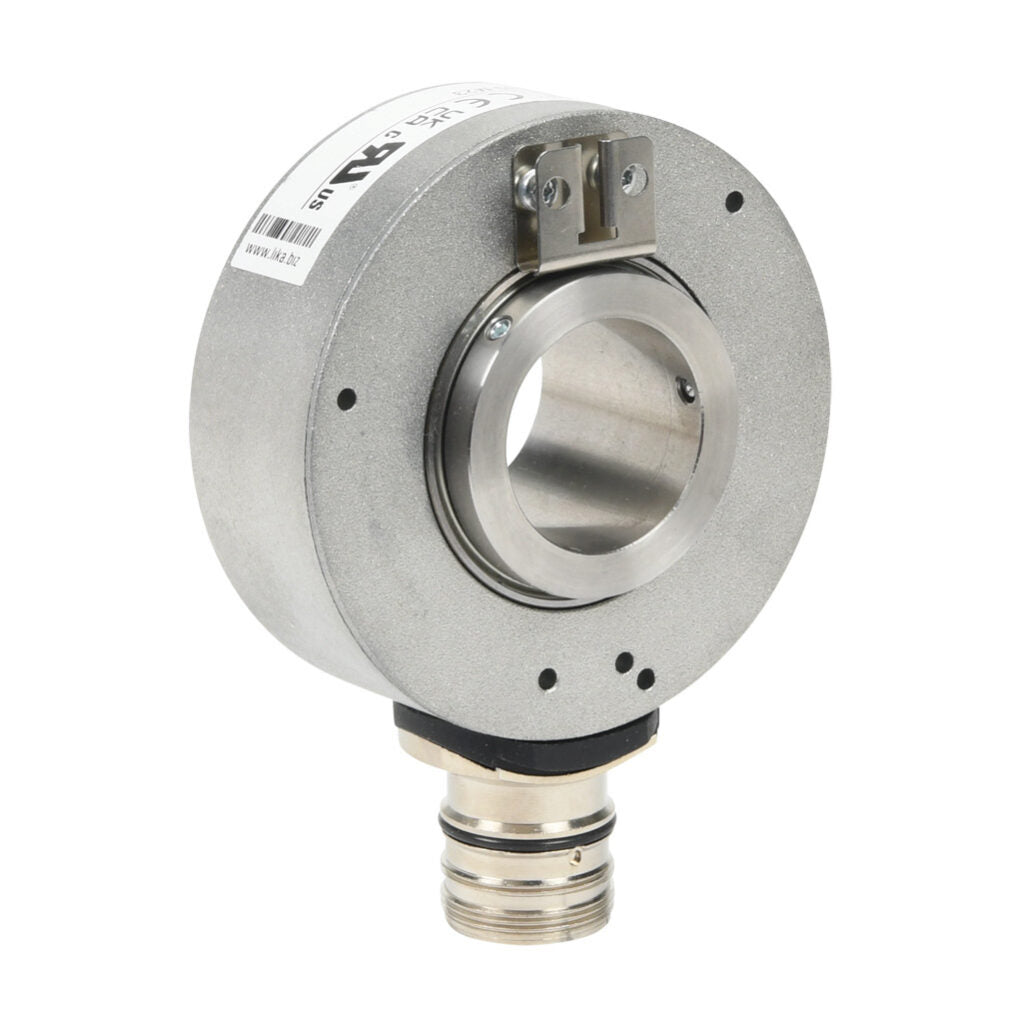

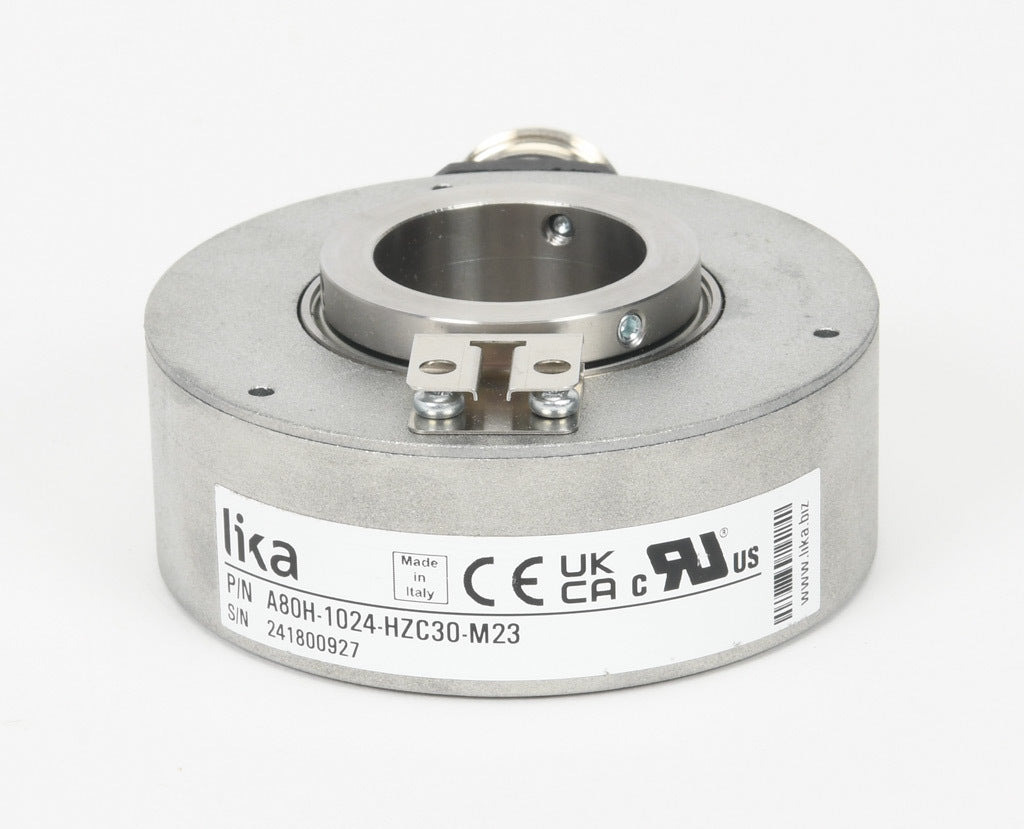

Lika Electronic A80 series incremental (quadrature) rotary encoder, 5-30 VDC, universal (line driver or NPN/PNP open collector) output, medium duty, 1024 ppr, multiple hollow shafts (5/8in - 30mm), 80mm diameter body, IP64, radial exit, M23 male.

Technical Specifications (PDF)

Logistics & Compliance

  • Item Shipping Weight: 0.54 kg
  • Country Of Origin: ITALY
  • HS Code: 9029.1
View full details
Technical Attributes
BrandLika Electronic
ItemEncoder
SeriesA80
Feedback TypeIncremental (quadrature)
Encoder TypeRotary
Voltage Rating5-30 VDC
Encoder Output TypeUniversal (line driver or NPN/PNP open collector)
Duty RatingMedium duty
Encoder Resolution1024 ppr
Axial Shaft Load30N
Frequency Response300 kHz
Speed Rating6000rpm
Flange Mount No
Encoder Body Diameter80mm
Housing MaterialAluminum alloy
IP RatingIP64
Exit OrientationRadial
Connector TypeM23 male
A80H-1024-HZC30-M23 Downloads
Documents

Technical Specifications

Other Documents

Drawings

A80H-1024-HZC30-M23 Compliance Information
Agency Compliance & Certifications

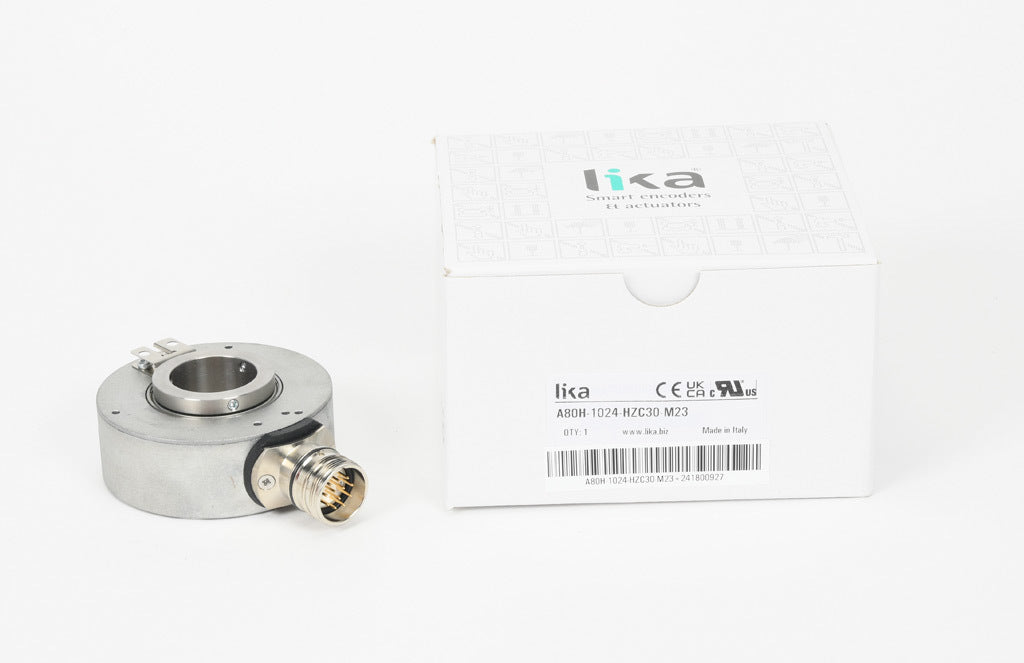

A80H-1024-HZC30-M23 What's in the Box

What’s in the box information is coming soon.
