| Brand | Lika Electronic |
| Item | Encoder |
| Series | AQ59 |
| Feedback Type | Incremental (quadrature) |
| Encoder Type | Rotary |
| Voltage Rating | 5-30 VDC |
| Encoder Output Type | Universal (line driver or NPN/PNP open collector) |
| Duty Rating | Medium duty |
| Encoder Resolution | Up to 14-bit (16384 ppr) |
| Axial Shaft Load | 100N |
| Frequency Response | 500 kHz |
| Speed Rating | 6000rpm |
| Flange Mount | No |
| Encoder Body Diameter | 59mm |
| Housing Material | Aluminum alloy |
| IP Rating | IP65 |
| Exit Orientation | Radial |
| Connector Type | M12 male |
AQ59H-PRG-HZC15-M12 Downloads
Technical Specifications
Other Documents
Drawings

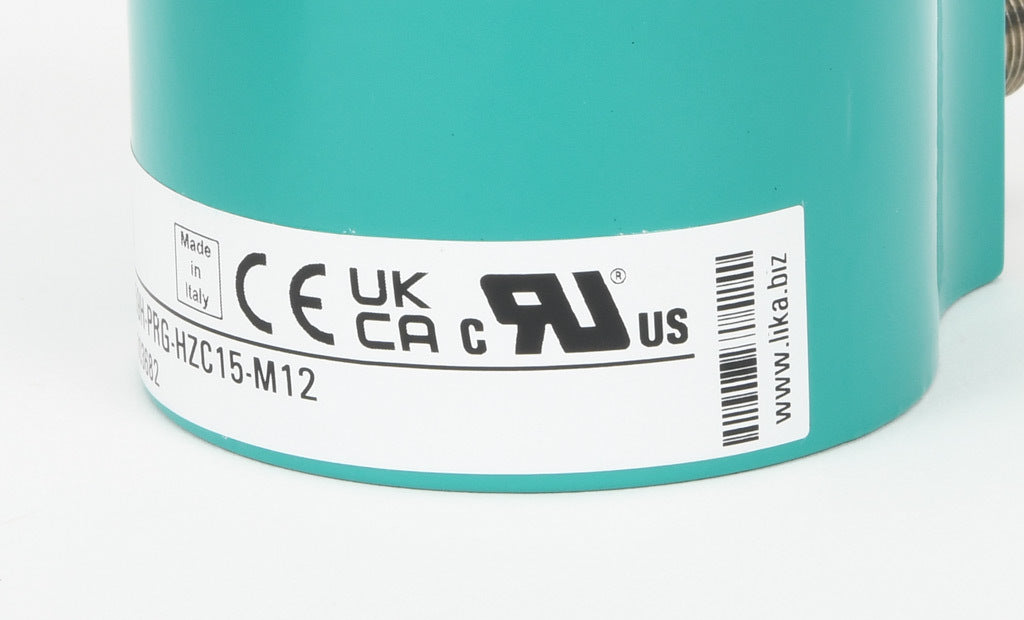

AQ59H-PRG-HZC15-M12 Compliance Information
Agency Compliance & Certifications
- 📄 UL Listed File #: None
- 📄EU REACH Document

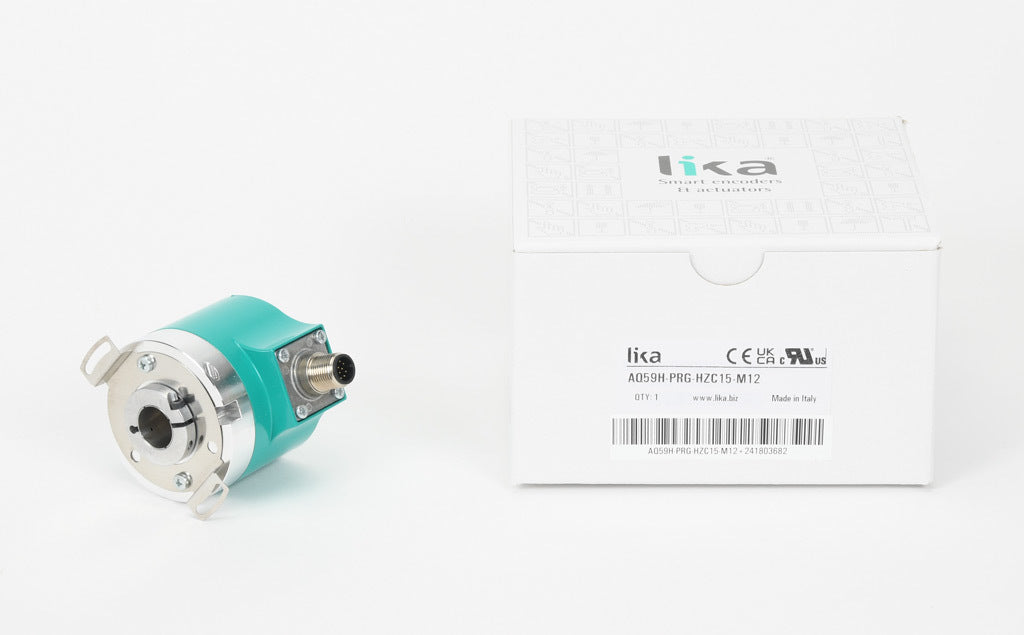

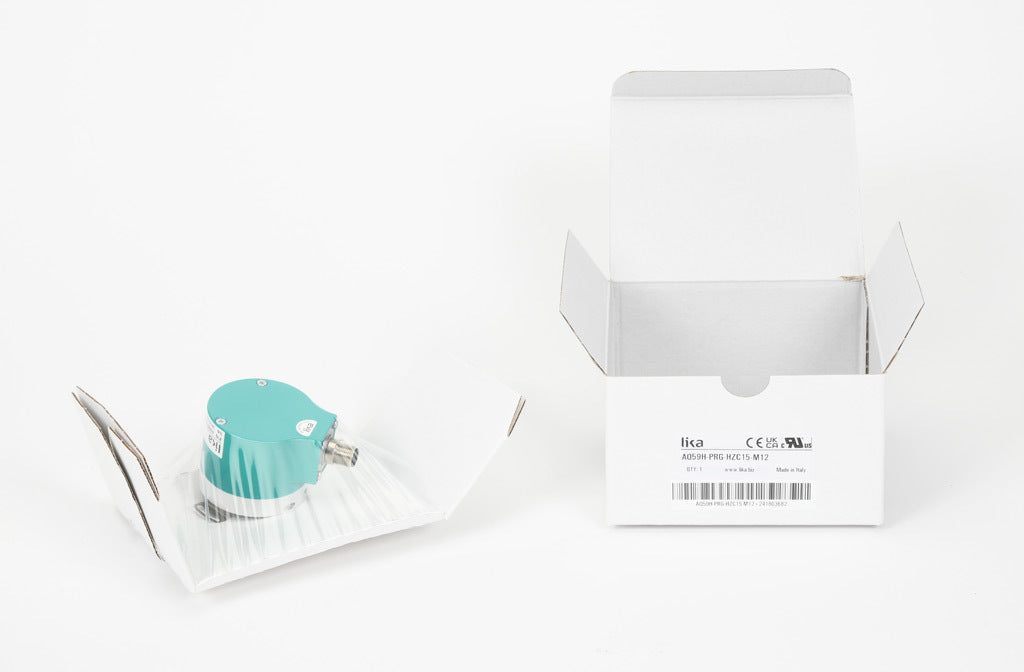

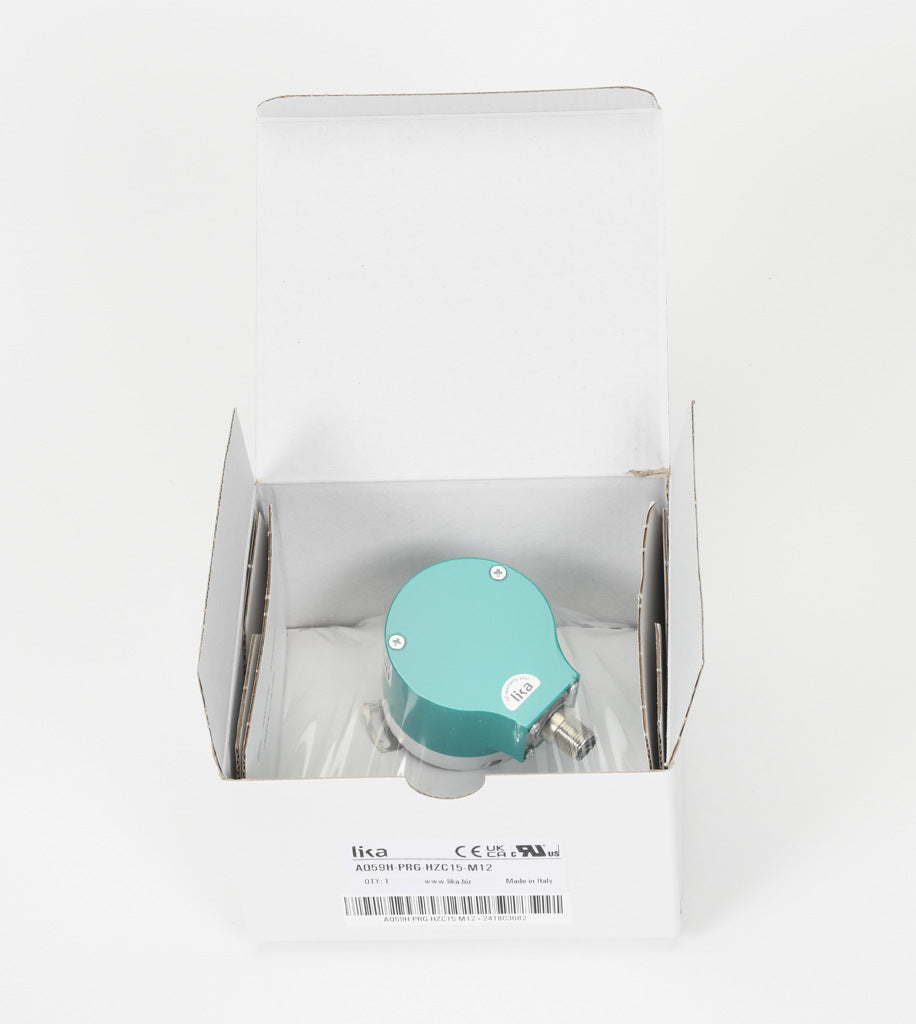

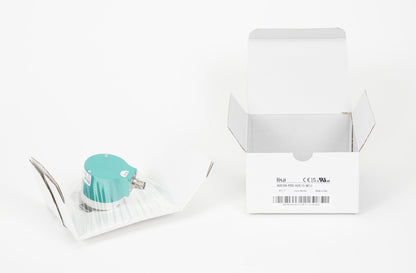

AQ59H-PRG-HZC15-M12 What's in the Box
What’s in the box information is coming soon.
