AR01-1250-HM12-A

AR01-1250-HM12-A

$329.00 AUD
$329.00 AUD
Sale Sold out

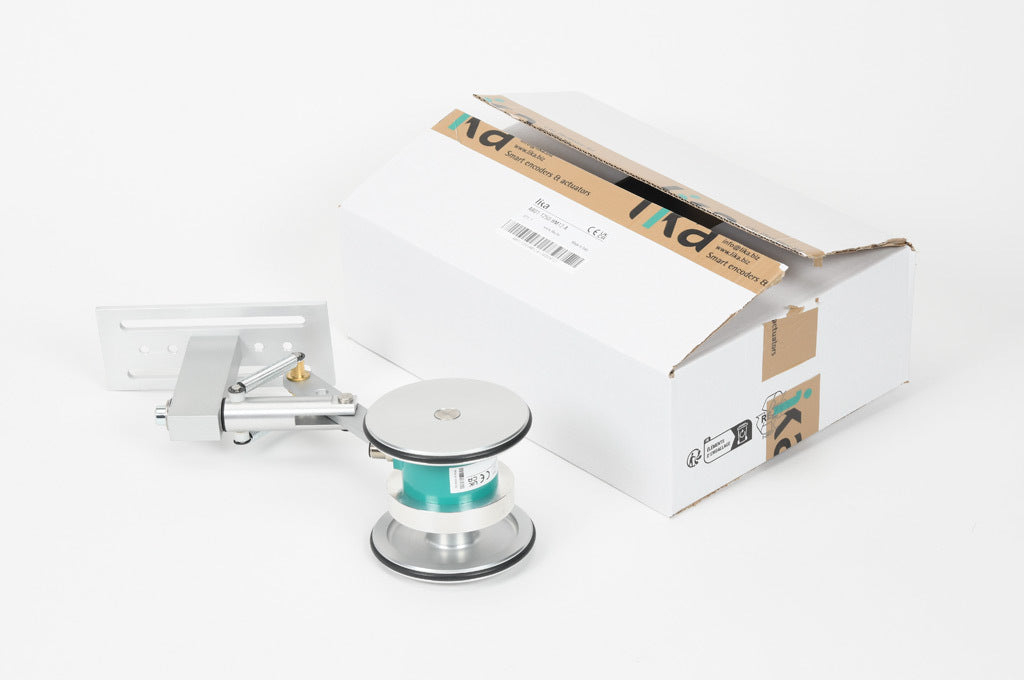

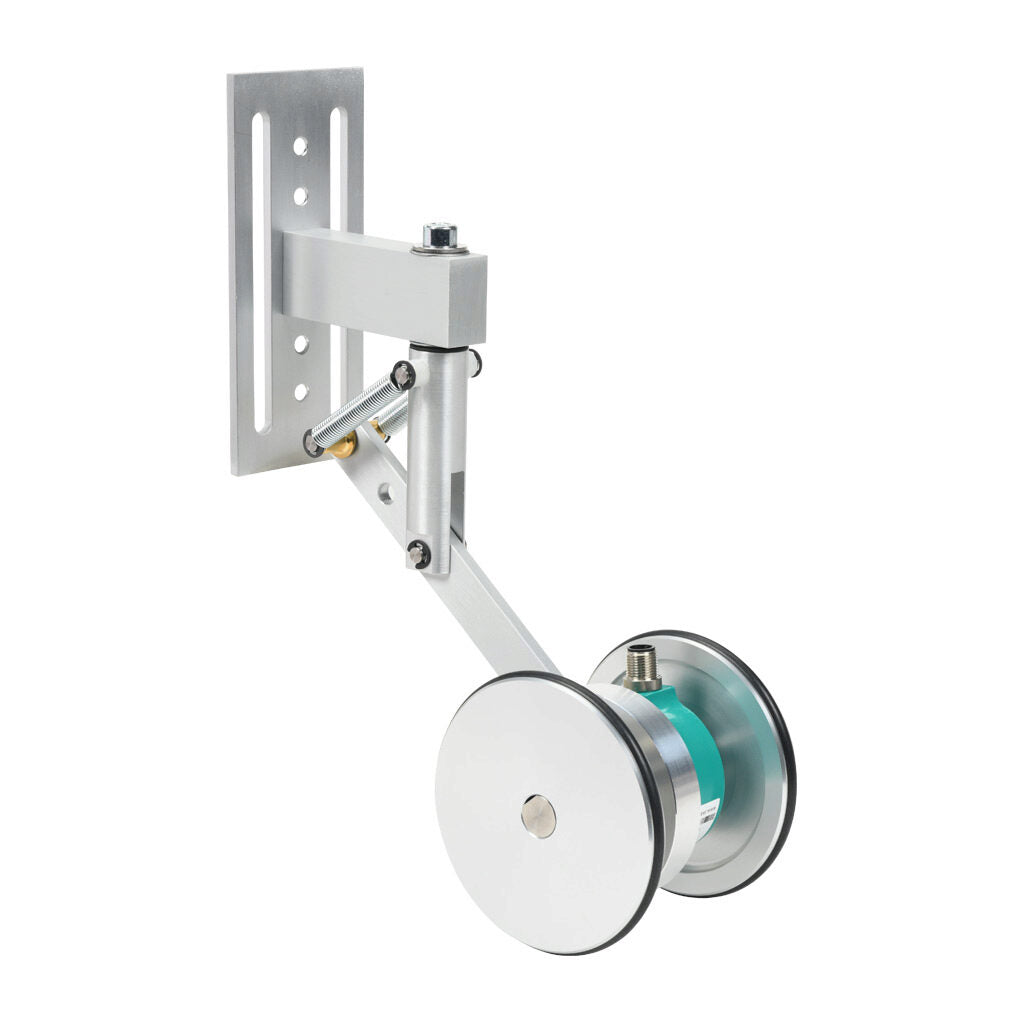

Lika Electronic AR01 series incremental (quadrature) rotary measuring wheel encoder assembly, 5-30 VDC, universal (line driver or NPN/PNP open collector) output, 1250 ppr. (1) encoder, (2) measuring wheels, (1) spring-loaded arm and (1) mounting bracket included.

Technical Specifications (PDF)

Logistics & Compliance

  • Item Shipping Weight: 1.27 kg
  • Country Of Origin: ITALY
  • HS Code: 9029.1
View full details
Technical Attributes
BrandLika Electronic
ItemMeasuring wheel encoder assembly
SeriesAR01
Feedback TypeIncremental (quadrature)
Encoder TypeRotary
Voltage Rating5-30 VDC
Encoder Output TypeUniversal (line driver or NPN/PNP open collector)
Duty RatingLight duty
Encoder Resolution1250 ppr
Frequency Response50 kHz
Speed Rating2000rpm
Flange Mount No
Encoder Body Diameter58mm
Housing MaterialAluminum
IP RatingIP65
Exit OrientationRadial
Connector TypeM12 male
Includes(1) encoder, (2) measuring wheels, (1) spring-loaded arm and (1) mounting bracket
AR01-1250-HM12-A Downloads
Documents

Technical Specifications

Other Documents

Drawings

AR01-1250-HM12-A Compliance Information
Agency Compliance & Certifications
AR01-1250-HM12-A What's in the Box

What’s in the box information is coming soon.
