TRD-GK1000-RZD

TRD-GK1000-RZD

$384.00 AUD
$384.00 AUD
Sale Sold out

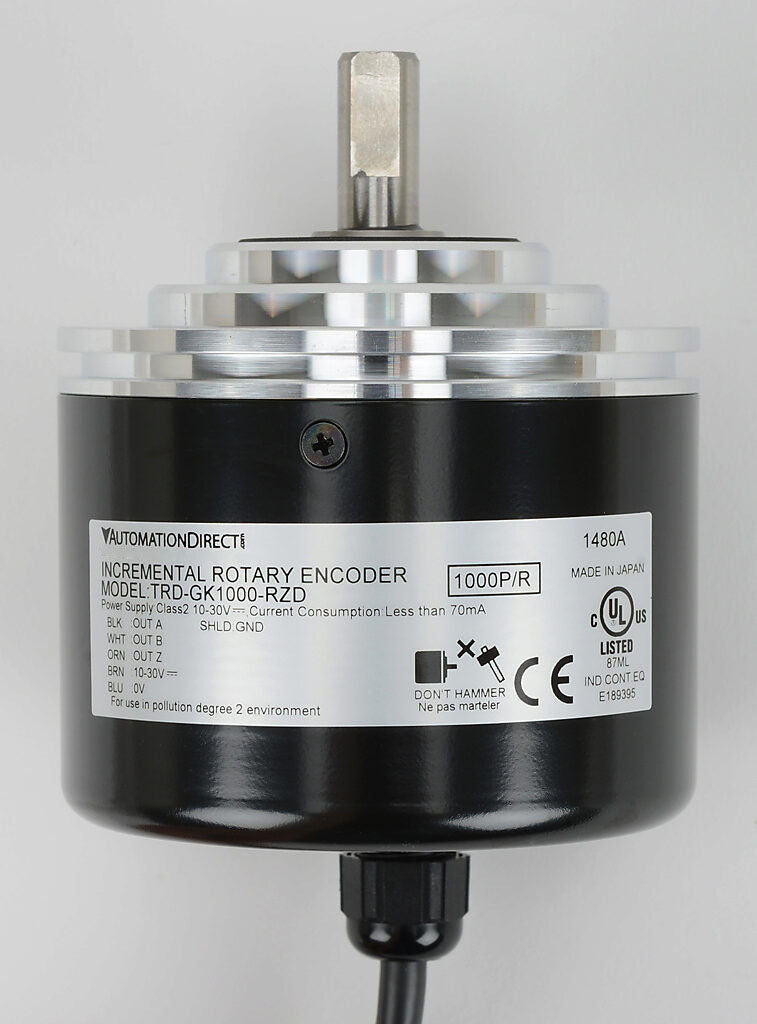

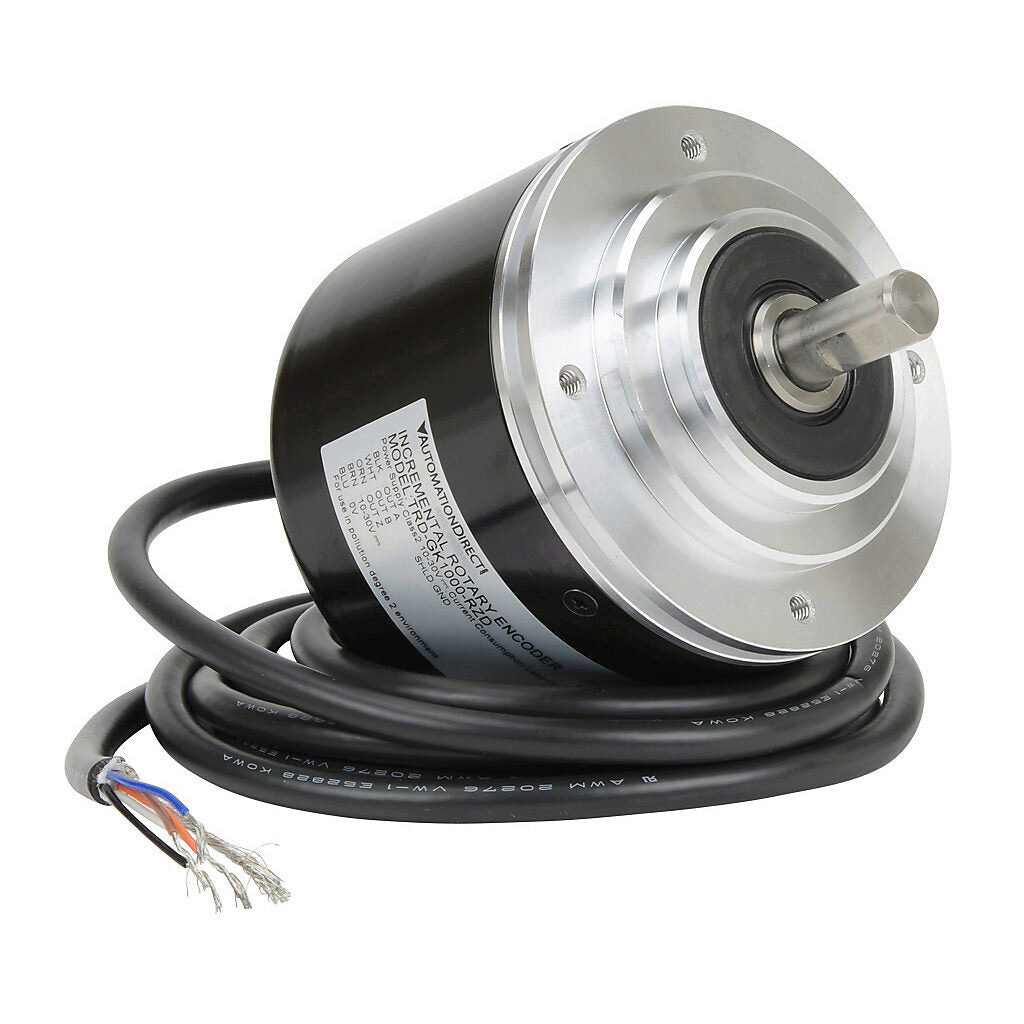

JTEKT TRD-GK series incremental (quadrature) rotary encoder, 10-30 VDC, push-pull (totem) output, heavy duty, 1000 ppr, 10mm solid shaft, 78mm diameter body, IP65, 6.5ft/2m cable length, axial exit, pigtail.

Technical Specifications (PDF)

Logistics & Compliance

  • Item Shipping Weight: 0.74 kg
  • Country Of Origin: JAPAN
  • HS Code: 9029.1
View full details
Technical Attributes
BrandJTEKT
ItemEncoder
SeriesTRD-GK
Feedback TypeIncremental (quadrature)
Encoder TypeRotary
Voltage Rating10-30 VDC
Encoder Output TypePush-pull (totem)
Duty RatingHeavy duty
Encoder Resolution1000 ppr
Shaft TypeSolid
Shaft Diameter10mm
Radial Shaft Load100N
Axial Shaft Load50N
Frequency Response100 kHz
Speed Rating5000rpm
Flange Mount No
Encoder Body Diameter78mm
Housing MaterialAluminum
IP RatingIP65
Cable Length6.5ft/2m
Cable Diameter Size6mm
Wire Size24 AWG
Exit OrientationAxial
Connector TypePigtail
IncludesMounting hardware
TRD-GK1000-RZD Downloads
Documents

Technical Specifications

Other Documents

Drawings

TRD-GK1000-RZD Compliance Information
Agency Compliance & Certifications

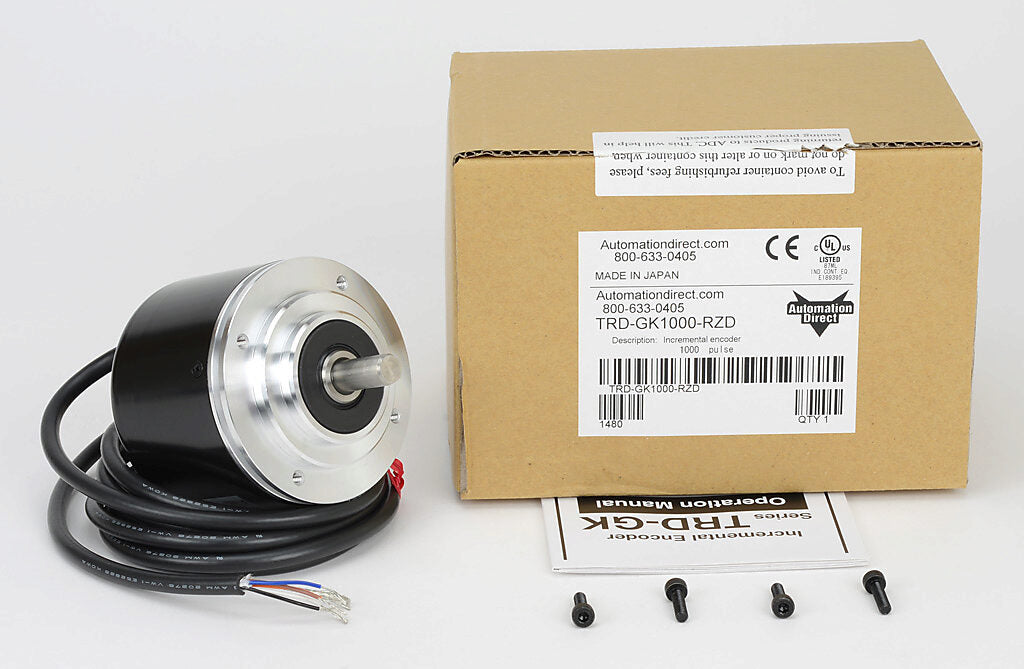

TRD-GK1000-RZD What's in the Box

What’s in the box information is coming soon.
