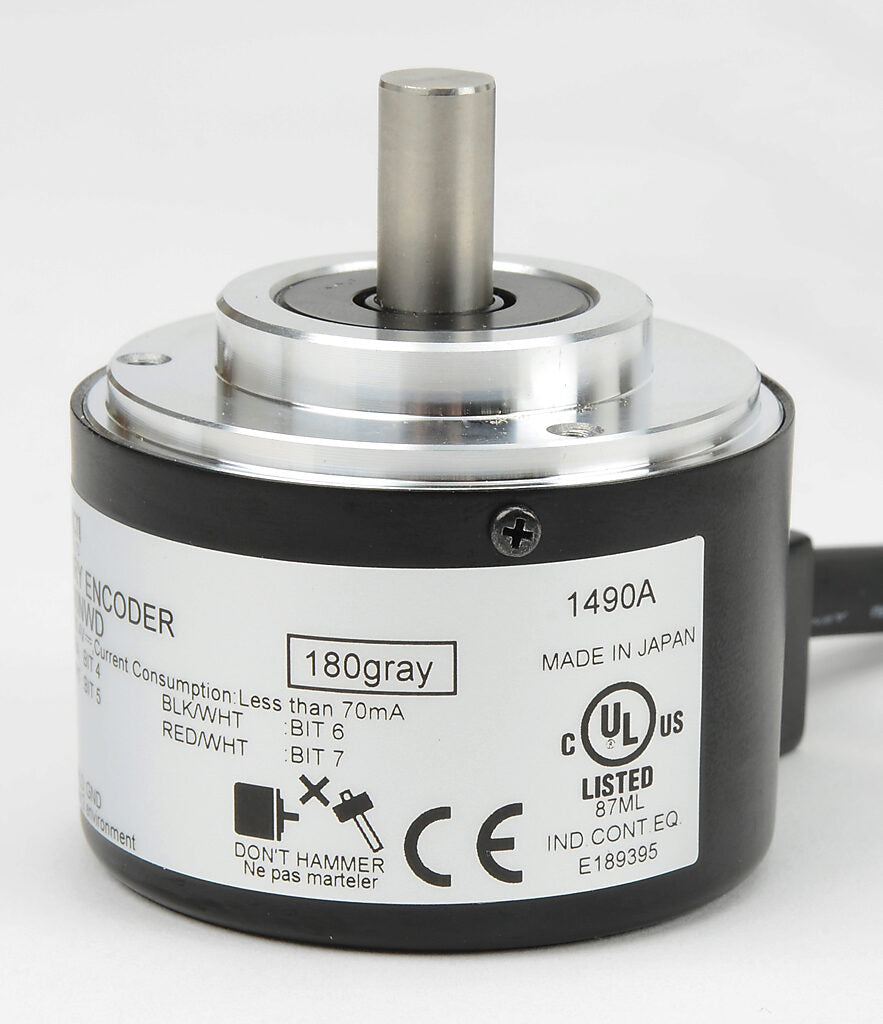

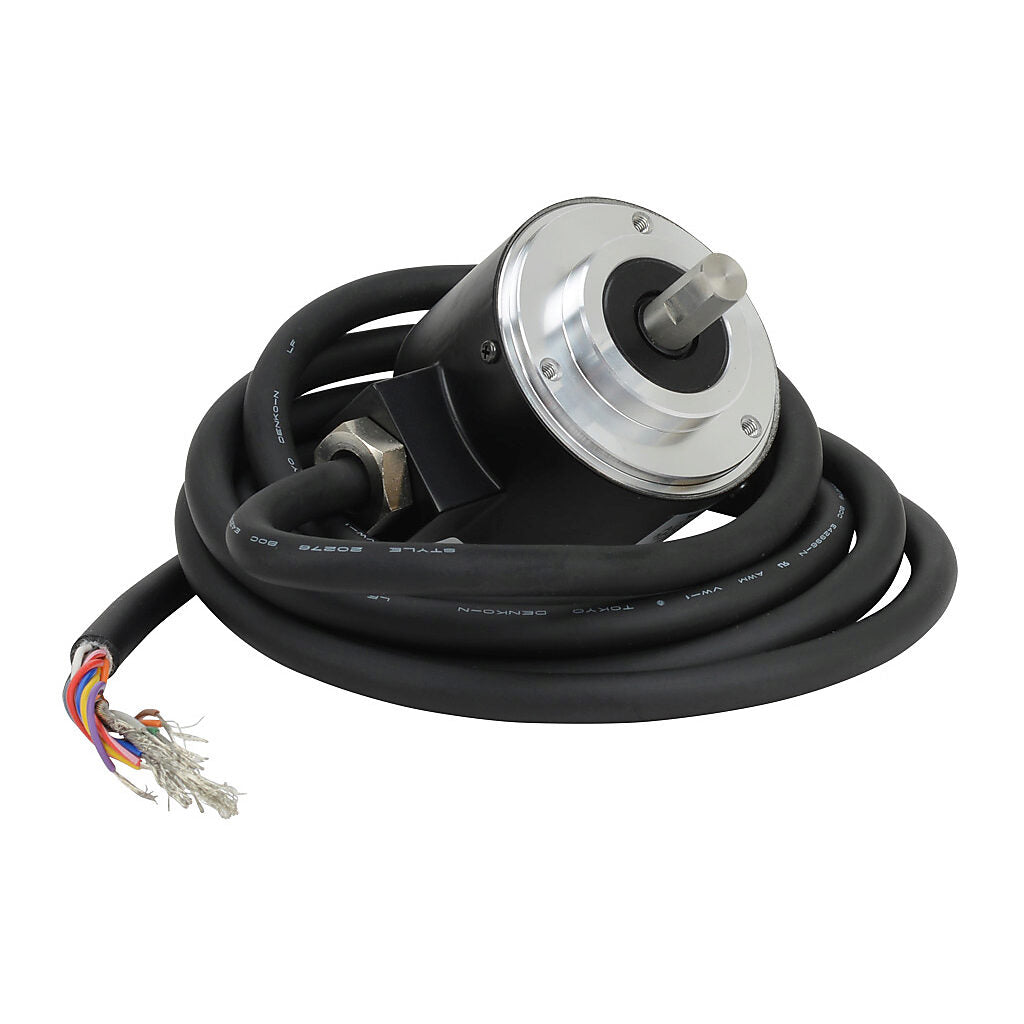

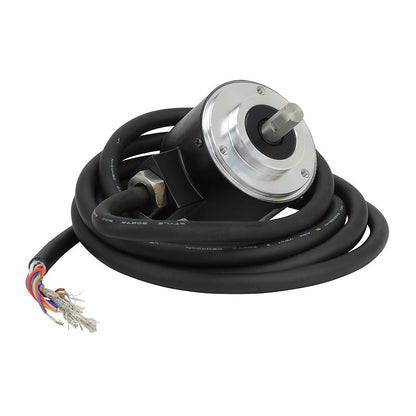

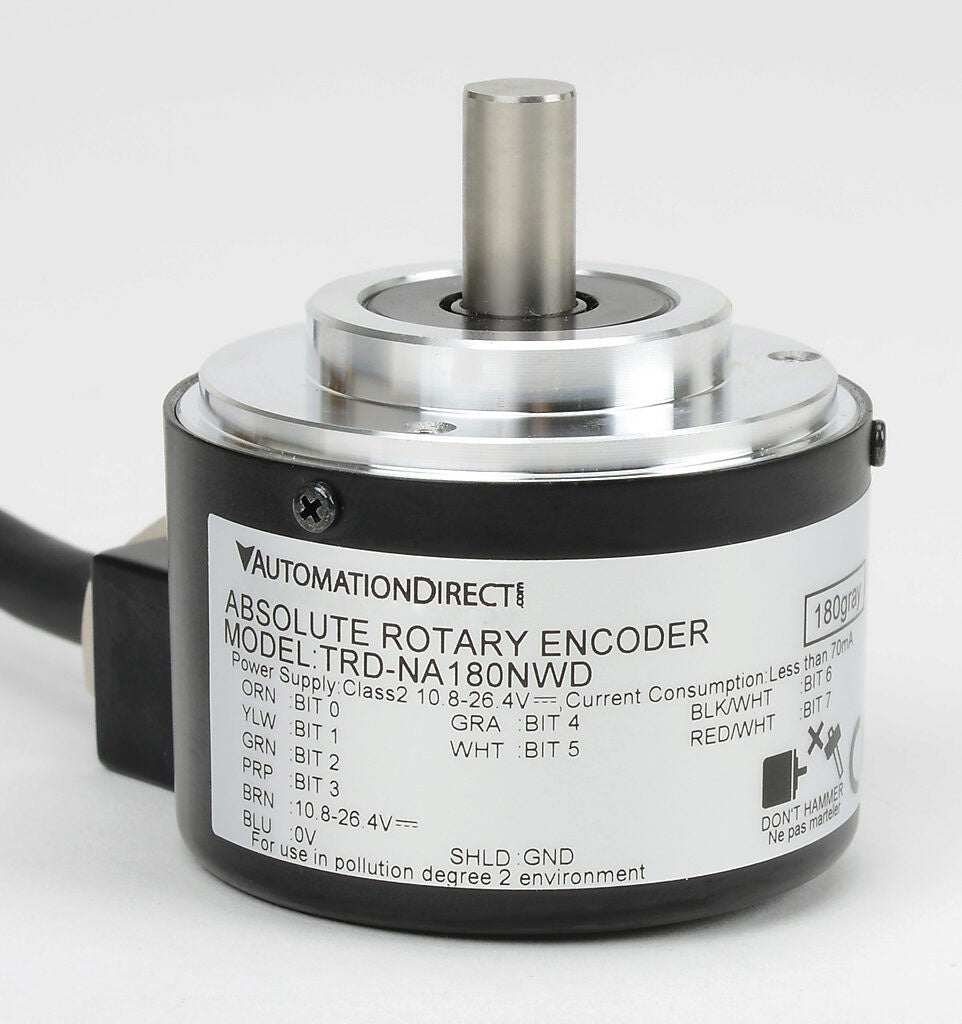

| Brand | JTEKT |
| Item | Encoder |
| Series | TRD-NA |
| Feedback Type | Single-turn absolute (gray code) |
| Encoder Type | Rotary |
| Voltage Rating | 10-26 VDC |
| Encoder Output Type | NPN open collector |
| Duty Rating | Medium duty |
| Encoder Resolution | 180 ppr |
| Shaft Type | Solid |
| Shaft Diameter | 8mm |
| Radial Shaft Load | 50N |
| Axial Shaft Load | 30N |
| Frequency Response | 20 kHz |
| Speed Rating | 3000rpm |
| Flange Mount | No |
| Encoder Body Diameter | 50mm |
| Housing Material | Aluminum |
| IP Rating | IP65 |
| Cable Length | 6.5ft/2m |
| Cable Diameter Size | 7mm |
| Wire Size | 26 AWG |
| Exit Orientation | Radial |
| Connector Type | Pigtail |
| Includes | Mounting hardware |
TRD-NA180NWD Downloads
Technical Specifications
Other Documents
Drawings
TRD-NA180NWD Compliance Information
Agency Compliance & Certifications
- 📄 UL Listed File #: E189395
- 📄EU REACH Document

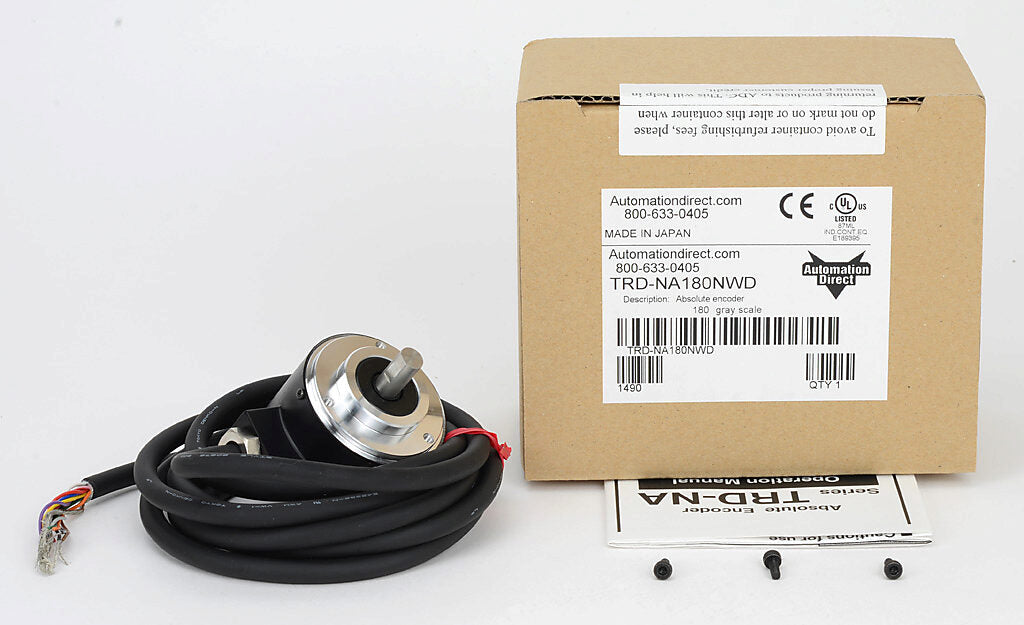

TRD-NA180NWD What's in the Box
What’s in the box information is coming soon.
