| Brand | JTEKT |
| Item | Encoder |
| Series | TRD-SR |
| Feedback Type | Incremental (quadrature) |
| Encoder Type | Rotary |
| Voltage Rating | 5 VDC |
| Encoder Output Type | Line driver (differential) |
| Duty Rating | Light duty |
| Encoder Resolution | 600 ppr |
| Shaft Type | Solid |
| Shaft Diameter | 6mm |
| Radial Shaft Load | 30N |
| Axial Shaft Load | 20N |
| Frequency Response | 200 kHz |
| Speed Rating | 6000rpm |
| Flange Mount | No |
| Encoder Body Diameter | 40mm |
| Housing Material | Aluminum |
| IP Rating | IP65 |
| Cable Length | 6.5ft/2m |
| Cable Diameter Size | 6mm |
| Wire Size | 26 AWG |
| Exit Orientation | Radial |
| Connector Type | Pigtail |
| Includes | Mounting hardware |
TRD-SR600VWD Downloads
Technical Specifications
Other Documents
TRD-SR600VWD Compliance Information
Agency Compliance & Certifications
- 📄 UL Listed File #: E189395
- 📄EU REACH Document

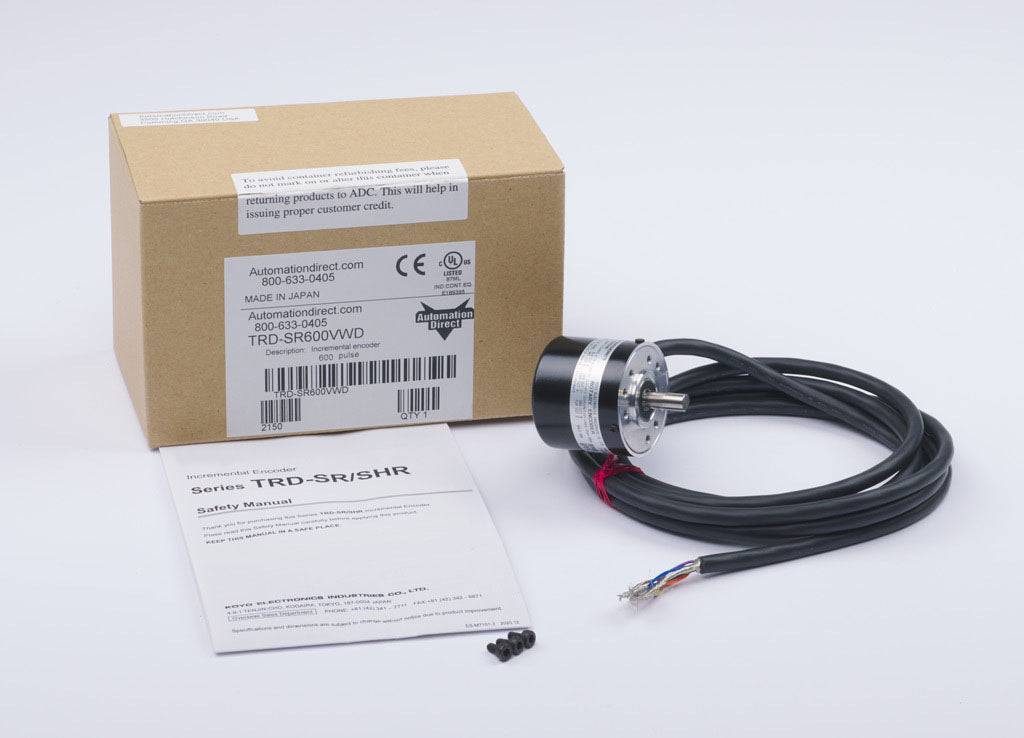

TRD-SR600VWD What's in the Box
