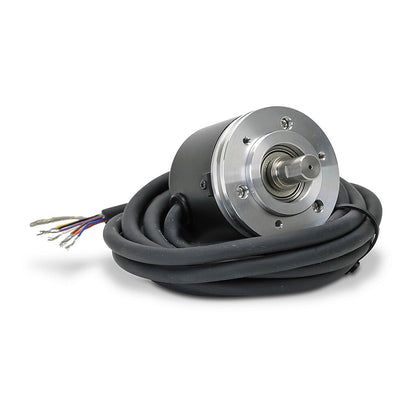

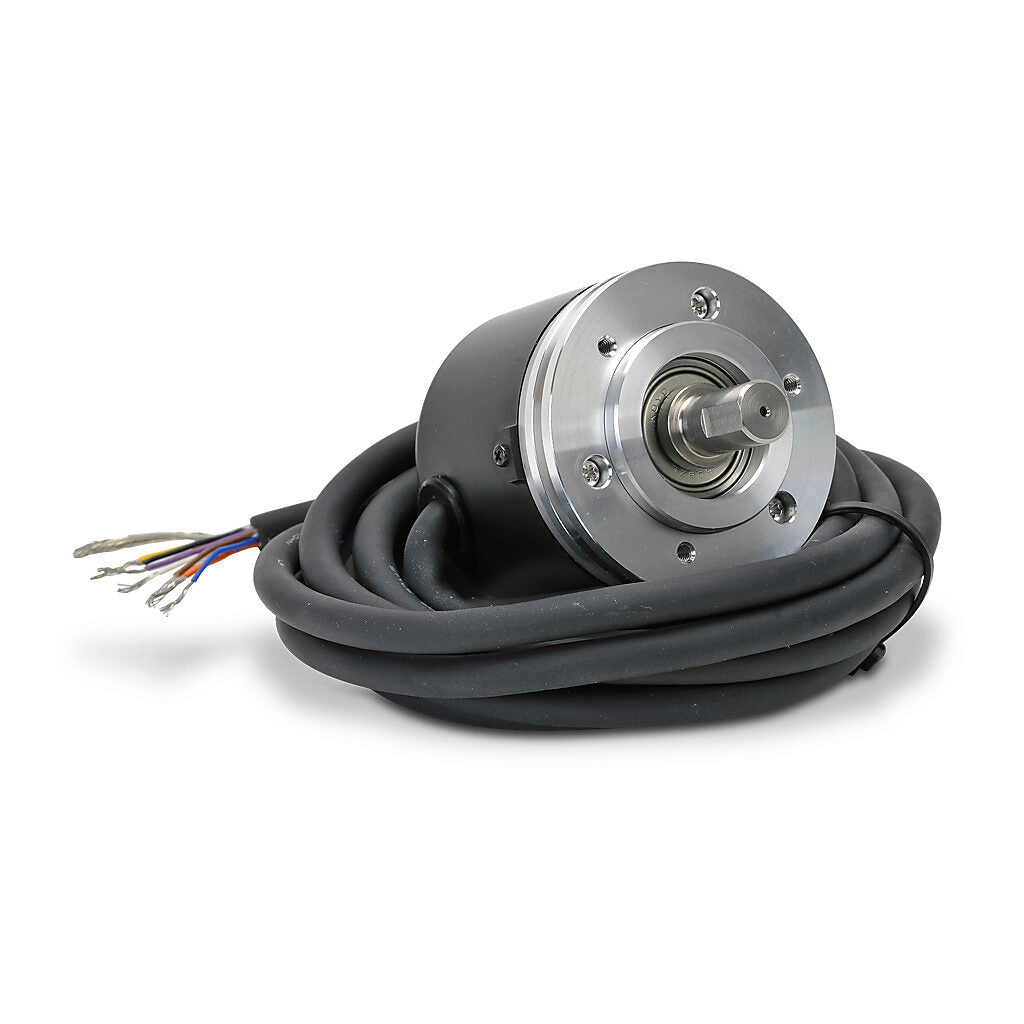

Brand | JTEKT |
Item | Encoder |
Series | TRDA-20 |
Feedback Type | Incremental (quadrature) |
Encoder Type | Rotary |
Voltage Rating | 5 VDC |
Encoder Output Type | Line driver (differential) |
Duty Rating | Medium duty |
Encoder Resolution | 1024 ppr |
Axial Shaft Load | 30N |
Frequency Response | 200 kHz |
Speed Rating | 5000rpm |
Flange Mount | No |
Encoder Body Diameter | 2in |
Housing Material | Aluminum |
IP Rating | IP50 |
Cable Length | 6.5ft/2m |
Cable Diameter Size | 6.4mm |
Wire Size | 24 AWG |
Exit Orientation | Radial |
Connector Type | Pigtail |
TRDA-20R1N1024VD Downloads
Technical Specifications
Other Documents
Drawings
TRDA-20R1N1024VD Compliance Information
Agency Compliance & Certifications
- 📄 UL Listed File #: E189395
- 📄EU REACH Document

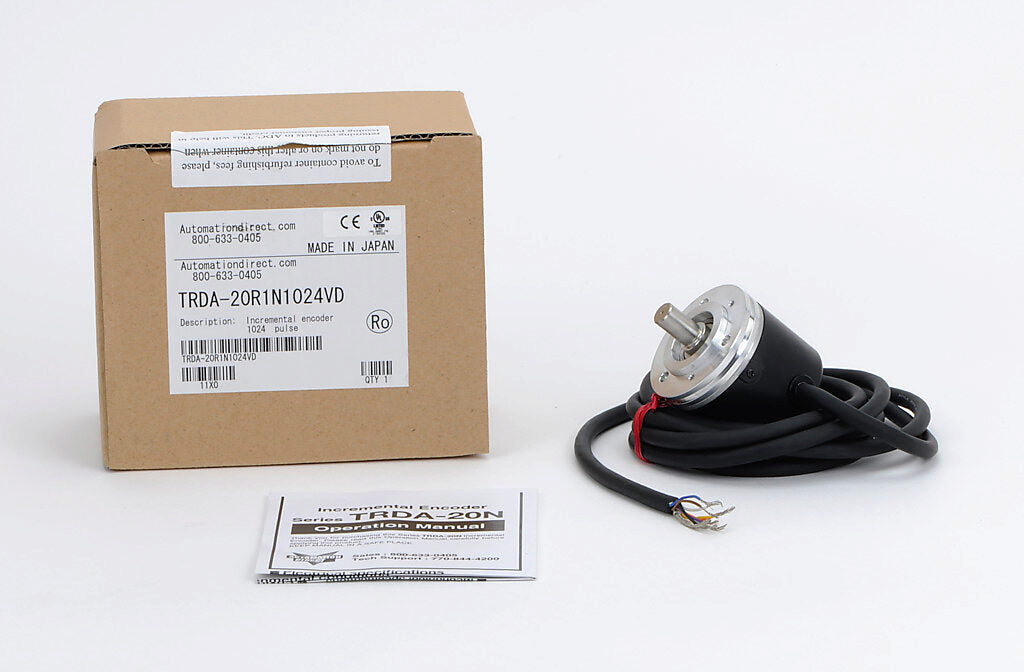

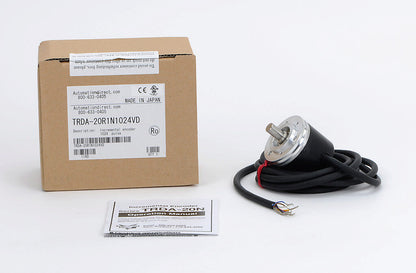

TRDA-20R1N1024VD What's in the Box
