| Brand | JTEKT |
| Item | Encoder |
| Series | TRDA-20 |
| Feedback Type | Incremental (quadrature) |
| Encoder Type | Rotary |
| Voltage Rating | 5-30 VDC |
| Encoder Output Type | Push-pull (totem) |
| Duty Rating | Medium duty |
| Encoder Resolution | 500 ppr |
| Axial Shaft Load | 30N |
| Frequency Response | 100 kHz |
| Speed Rating | 5000rpm |
| Flange Mount | No |
| Encoder Body Diameter | 2in |
| Housing Material | Aluminum |
| IP Rating | IP50 |
| Cable Length | 6.5ft/2m |
| Cable Diameter Size | 6.4mm |
| Wire Size | 24 AWG |
| Exit Orientation | Radial |
| Connector Type | Pigtail |
TRDA-20R1N500RZD Downloads
Technical Specifications
Other Documents
Drawings
TRDA-20R1N500RZD Compliance Information
Agency Compliance & Certifications
- 📄 UL Listed File #: E189395
- 📄EU REACH Document

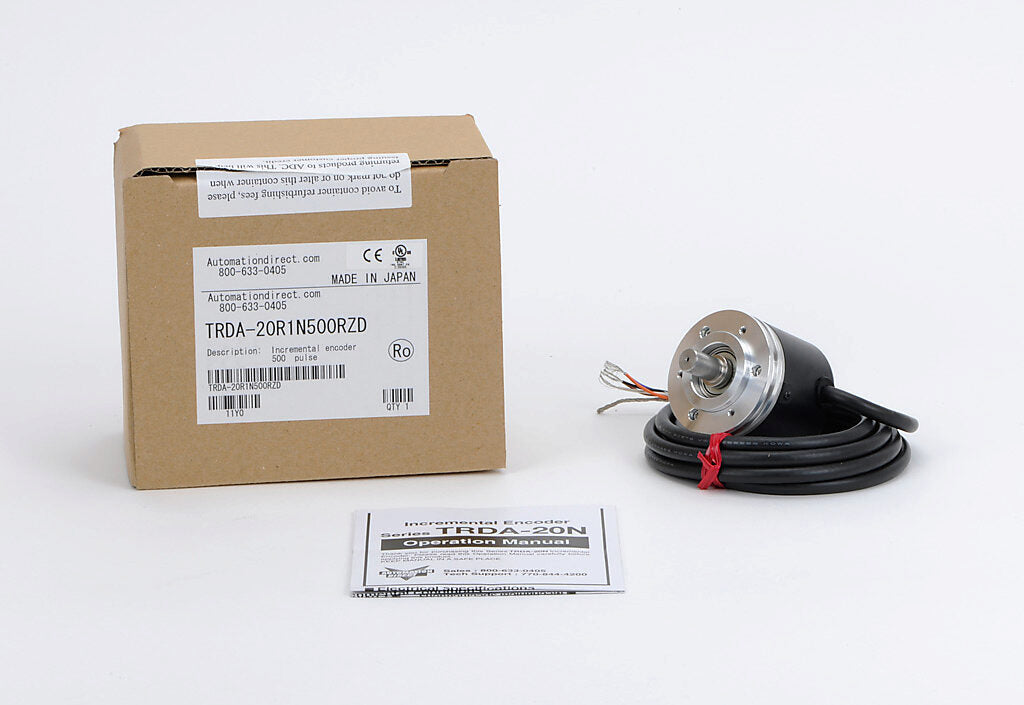

TRDA-20R1N500RZD What's in the Box
What’s in the box information is coming soon.
