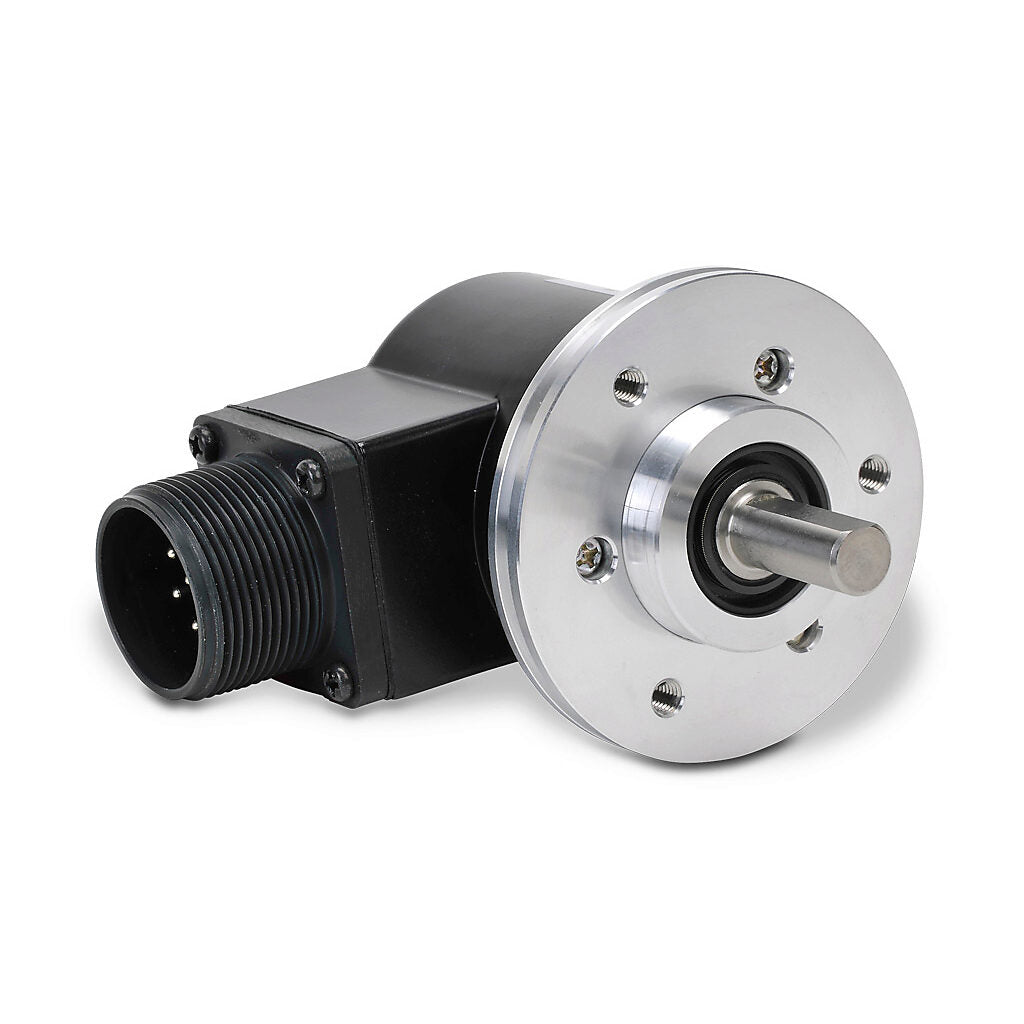

Brand | JTEKT |
Item | Encoder |
Series | TRDA-25 |
Feedback Type | Incremental (quadrature) |
Encoder Type | Rotary |
Voltage Rating | 5 VDC |
Encoder Output Type | Line driver (differential) |
Duty Rating | Medium duty |
Encoder Resolution | 1000 ppr |
Axial Shaft Load | 30N |
Frequency Response | 200 kHz |
Speed Rating | 3000rpm |
Flange Mount | Yes |
Encoder Body Diameter | 2in |
Housing Material | Aluminum |
IP Rating | IP65 |
Exit Orientation | Radial |
Connector Type | 10-pin Military Style (MS) connector |
TRDA25RN1000VWDMS Downloads
Technical Specifications
Other Documents
Drawings
TRDA25RN1000VWDMS Compliance Information
Agency Compliance & Certifications
- 📄 UL Listed File #: E189395
- 📄EU REACH Document

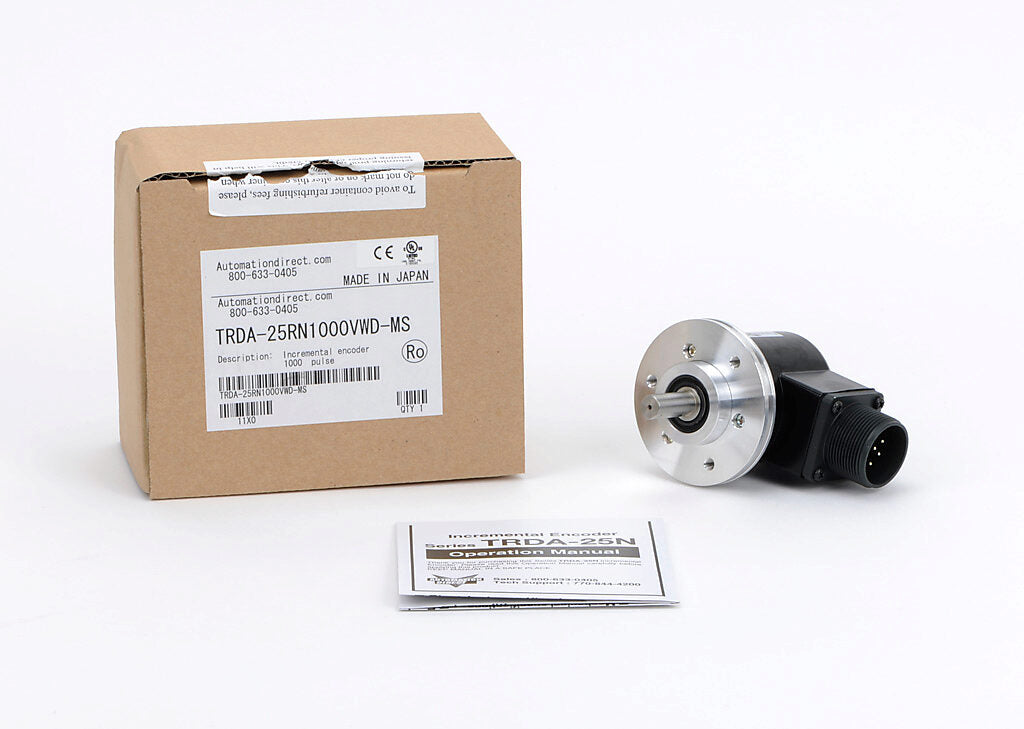

TRDA25RN1000VWDMS What's in the Box
What’s in the box information is coming soon.
