TRDA25RN1024VWDMS

TRDA25RN1024VWDMS

$260.00 AUD
$260.00 AUD
Sale Sold out

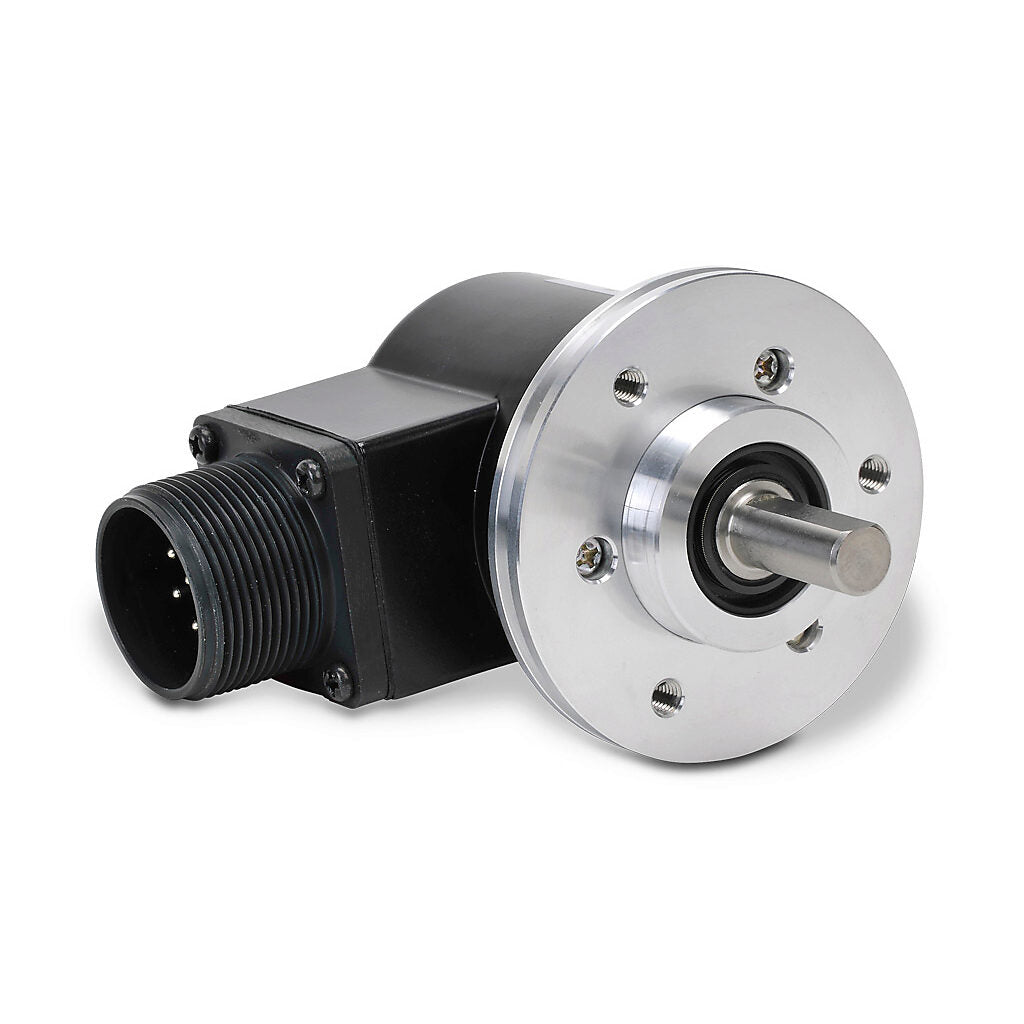

JTEKT TRDA-25 series incremental (quadrature) rotary encoder, 5 VDC, line driver (differential) output, medium duty, 1024 ppr, 3/8in solid shaft, flange mount, 2in diameter body, IP65, radial exit, 10-pin Military Style (MS) connector.

Technical Specifications (PDF)

Logistics & Compliance

  • Item Shipping Weight: 0.39 kg
  • Country Of Origin: JAPAN
  • HS Code: 9029.1
View full details
Technical Attributes
BrandJTEKT
ItemEncoder
SeriesTRDA-25
Feedback TypeIncremental (quadrature)
Encoder TypeRotary
Voltage Rating5 VDC
Encoder Output TypeLine driver (differential)
Duty RatingMedium duty
Encoder Resolution1024 ppr
Axial Shaft Load30N
Frequency Response200 kHz
Speed Rating3000rpm
Flange Mount Yes
Encoder Body Diameter2in
Housing MaterialAluminum
IP RatingIP65
Exit OrientationRadial

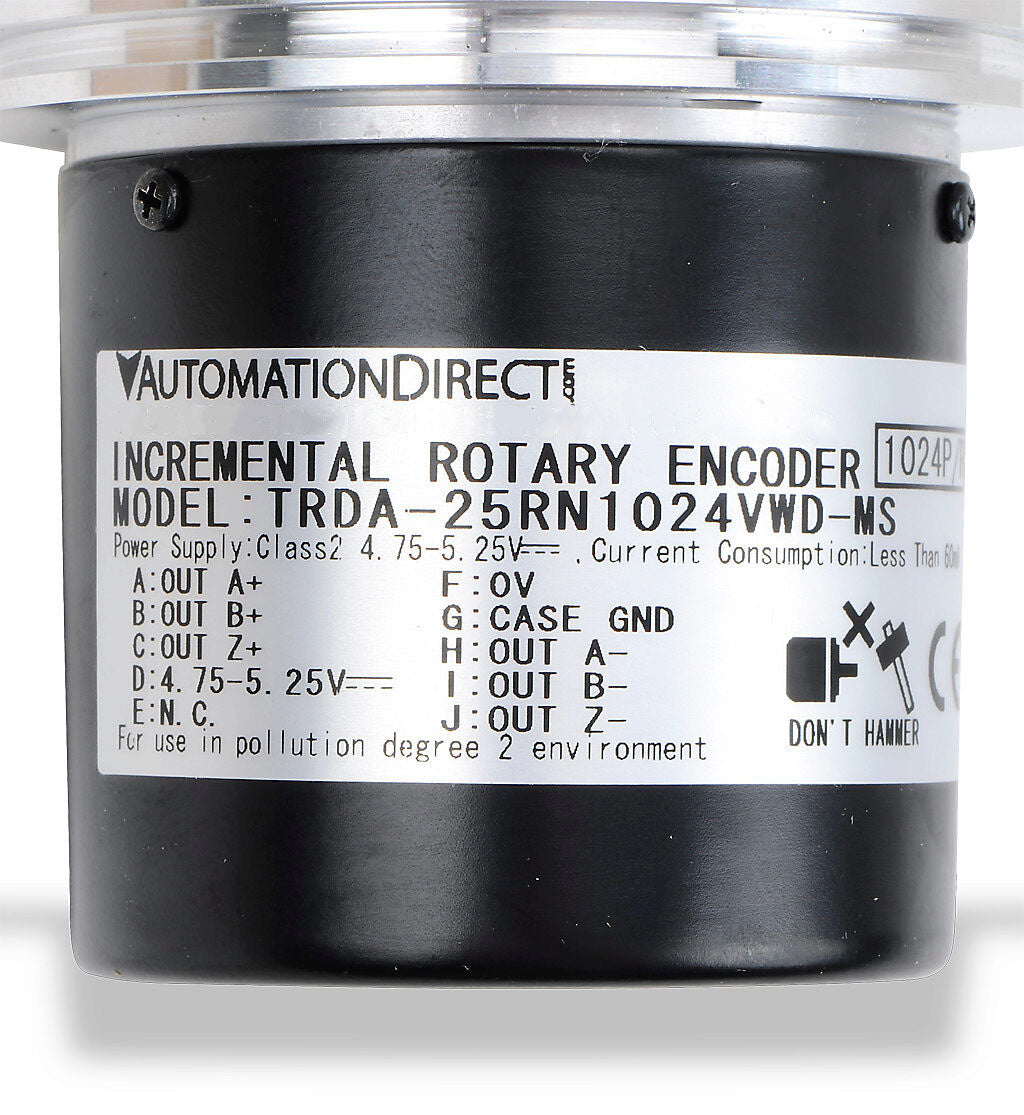

Connector Type10-pin Military Style (MS) connector
TRDA25RN1024VWDMS Downloads
Documents

Technical Specifications

Other Documents

Drawings

TRDA25RN1024VWDMS Compliance Information
Agency Compliance & Certifications

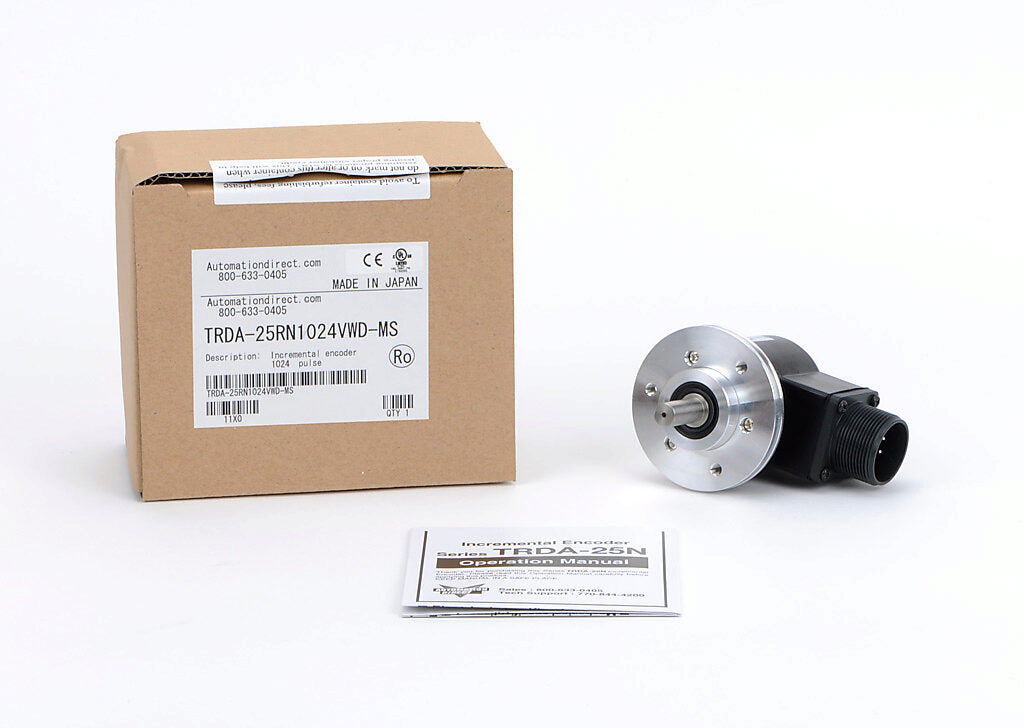

TRDA25RN1024VWDMS What's in the Box

What’s in the box information is coming soon.
