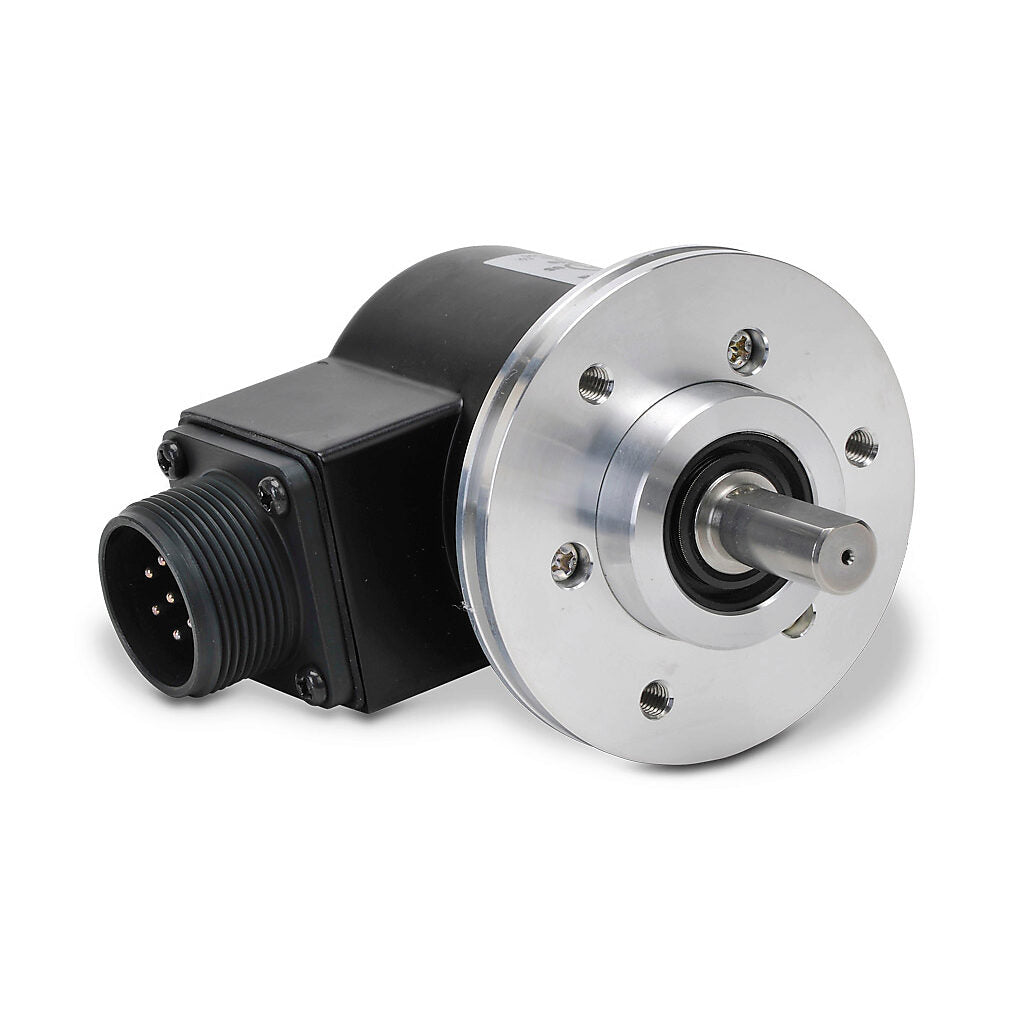

| Brand | JTEKT |
| Item | Encoder |
| Series | TRDA-25 |
| Feedback Type | Incremental (quadrature) |
| Encoder Type | Rotary |
| Voltage Rating | 5-30 VDC |
| Encoder Output Type | Push-pull (totem) |
| Duty Rating | Medium duty |
| Encoder Resolution | 2500 ppr |
| Axial Shaft Load | 30N |
| Frequency Response | 100 kHz |
| Speed Rating | 2400rpm |
| Flange Mount | Yes |
| Encoder Body Diameter | 2in |
| Housing Material | Aluminum |
| IP Rating | IP65 |
| Exit Orientation | Radial |
| Connector Type | 7-pin Military Style (MS) connector |
TRDA25RN2500RZWDMS Downloads
Technical Specifications
Other Documents
Drawings
TRDA25RN2500RZWDMS Compliance Information
Agency Compliance & Certifications
- 📄 UL Listed File #: E189395
- 📄EU REACH Document

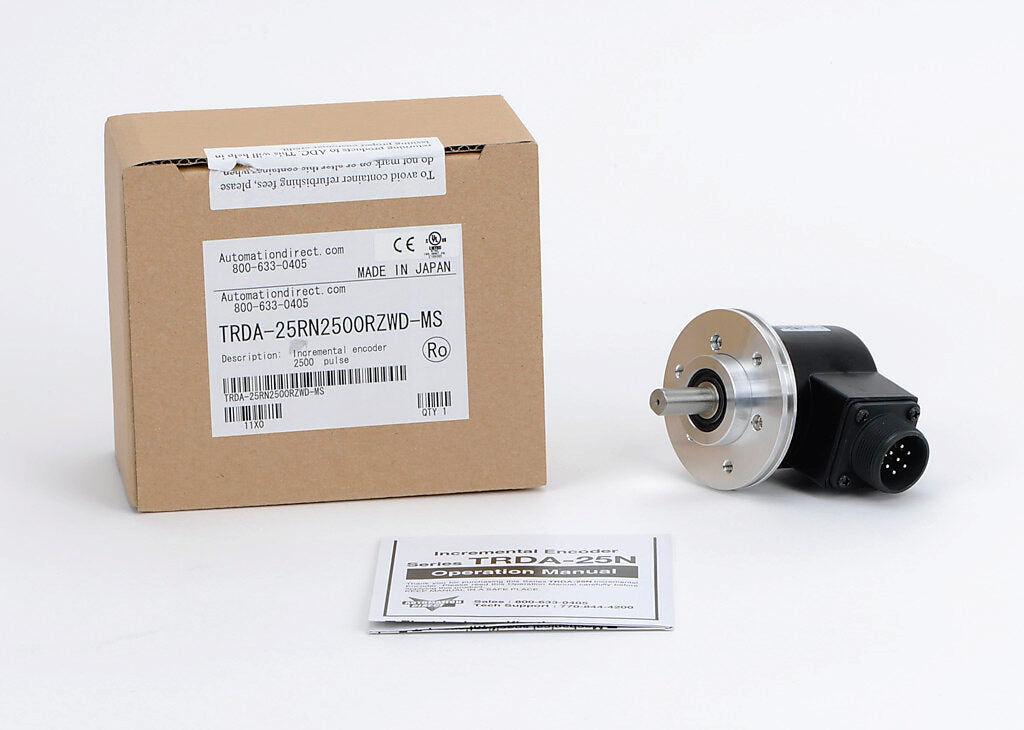

TRDA25RN2500RZWDMS What's in the Box
What’s in the box information is coming soon.
